Overview
Overview Coming Soon
ULTRACORE IQ intelligent core panel is Deemed-to-Satisfy non-combustible when tested to AS 1530.1 and AS 1530.3 as per the requirements of the NCC 2022, Clause C2D10(6)(g) and installed using the mechanical cassette-fix system as per NCC 2022, Clause C2D15(1). It has also been tested by Exova Warringtonfire to BS 8414 and AS 5113 full-scale testing to prove it does not contribute to the spread of fire. Visually, ULTRACORE IQ intelligent non-combustible core panel looks the same as traditional aluminium composite panel but with zero combustible core content (0%) meaning it achieves the lowest risk rating, category D, from the Insurance Council of Australia.
Proven V-groove Durability
Unlike 3mm SOLID aluminium, ULTRACORE IQ has 40 years of proven durability when using the common v-groove folding system. This is because the front skin is not impacted when v-grooving, as has always been intended.
AS 1530.1 Non-combustible
ULTRACORE IQ is one of the few aluminium panels globally that is Deemed-to-Satisfy non-combustible when tested to AS 1530.1 and AS 1530.3 in accordance with the NCC 2022 Clause C2D10(6)(g) requirements.
AS 5113 Fire Testing
ULTRACORE IQ is Deemed-to-Satisfy non-combustible so does not require further fire testing however it has been tested to AS 5113 full-scale testing by Exova Warrintonfire to prove it does not contribute to the spread of fire.
Zero Polyethylene Core (0%)
Unlike most other aluminium panel products including FR, Plus, A2 and NC type panels, the ULTRACORE IQ aluminium core contains ZERO percent flammable polyethylene (0%) and each lamina is 100% non-combustible.
Less Thermal Conductivity
ULTRACORE IQ aluminium core panel has a thermal conductivity of 2.54 W/mK compared to 205 W/mk for a SOLID aluminium panel. This means 80 x slower rate of heat transfer for greater fire safety and section J compliance.
Mechanical Cassette-Fixing
Compared to a SOLID aluminium panel, ULTRACORE IQ is faster and easier to fabricate using the well-proven z-angle cassette-fix system making it more cost effective and compliant with C2D15(1).
Oil-canning Resistance
Oil-canning is the uneven distribution of tension in SOLID aluminium panels which results in a rippling effect on the facade. The superior mechanical properties of ULTRACORE IQ guarantees against oil-canning.
Less Carbon, Less Weight
ULTRACORE IQ intelligent core panel is 100% recyclable and uses 50% less aluminium per m2 than 3mm SOLID aluminium for much less carbon footprint. It is also 50% lighter for significant structural and labour savings.
Availability

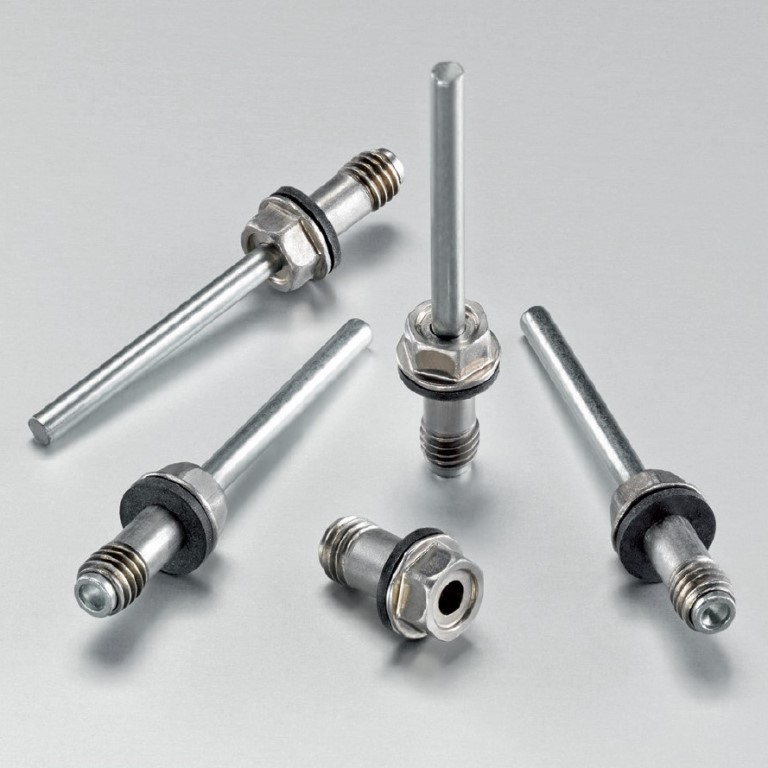

Eurofix Tuf-S Concealed Anchors
TS6CA** Concealed Anchors |
Code |
Description |
Lead Time |
MOQ |
---|---|---|---|
TS6CA9 | EUROFIX 9mm D6 Tuf-S Concealed Anchor, 500 Pack | 3-4 Weeks | 1 Pack |
TS6CA12 | EUROFIX 12mm D6 Tuf-S Concealed Anchor, 500 Pack | 3-4 Weeks | 1 Pack |
Eurofix Tuf-S Tools
TS6DB9/12 9mm/12mmDrill Bit |
TSUDL Depth Locator |
Code |
Description |
Lead Time |
MOQ |
---|---|---|---|
TS6DB9 | EUROFIX Drill Bit for 9mm D6 Anchor (Use with TSUDL) | Stock | 1 Bit |
TS6DB12 | EUROFIX Drill Bit for 12mm D6 Anchor (Use with TSUDL) | Stock | 1 Bit |
TSUDL | EUROFIX Universal Depth Locator Tool (Use with TS6DB*) | Stock | 1 Bit |

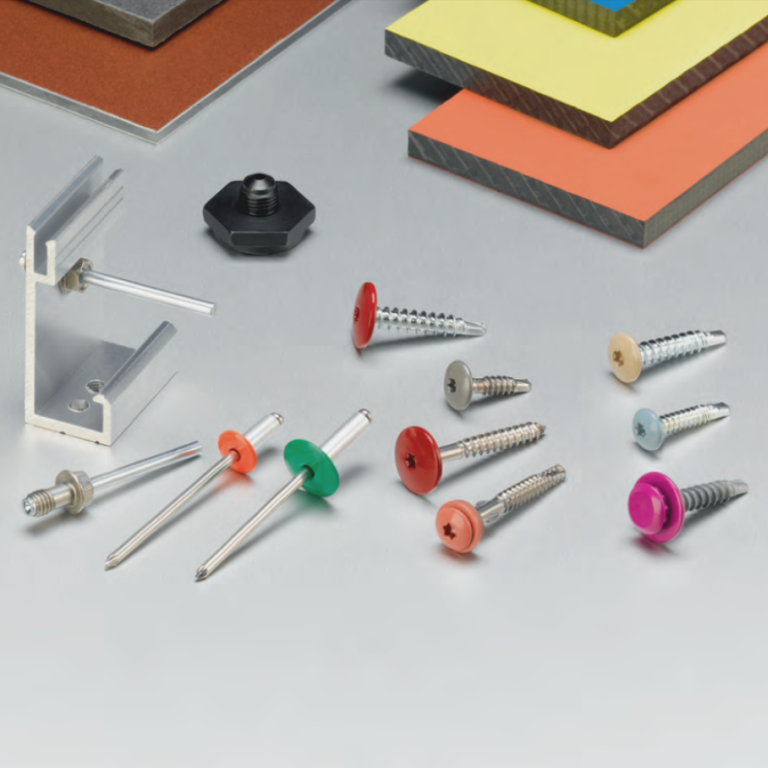

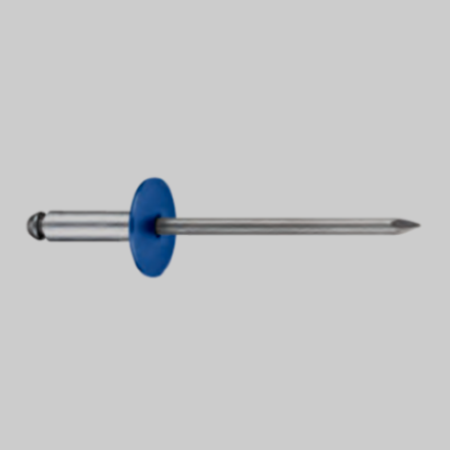

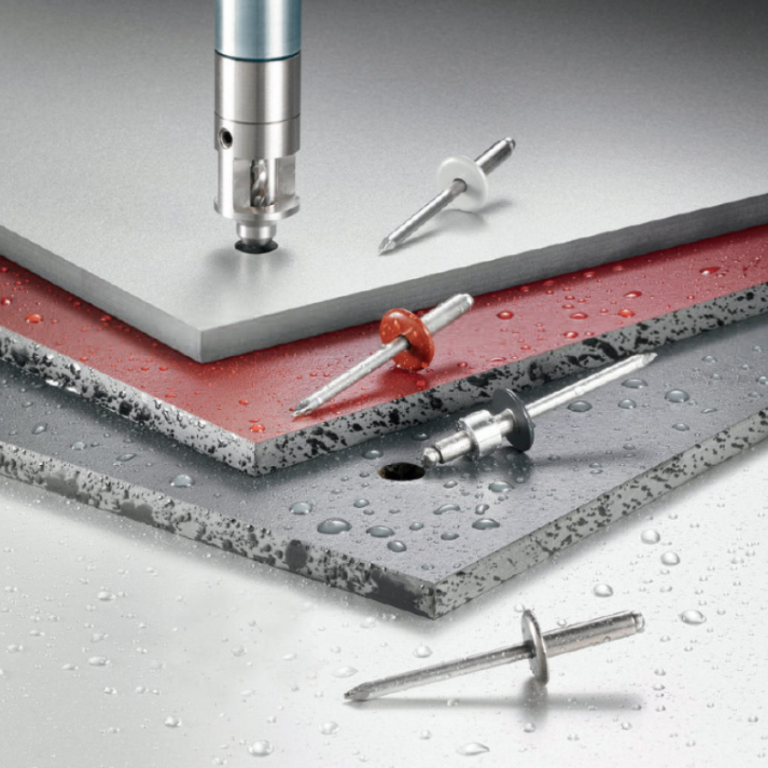

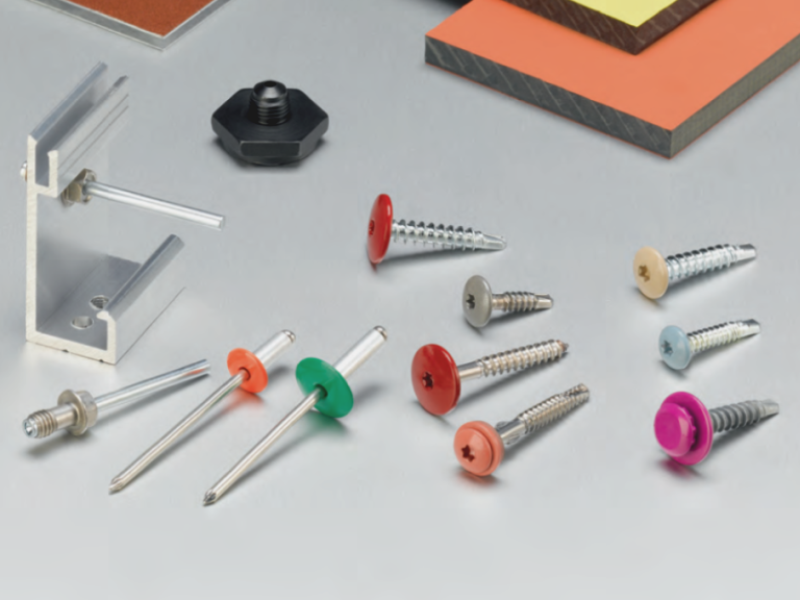

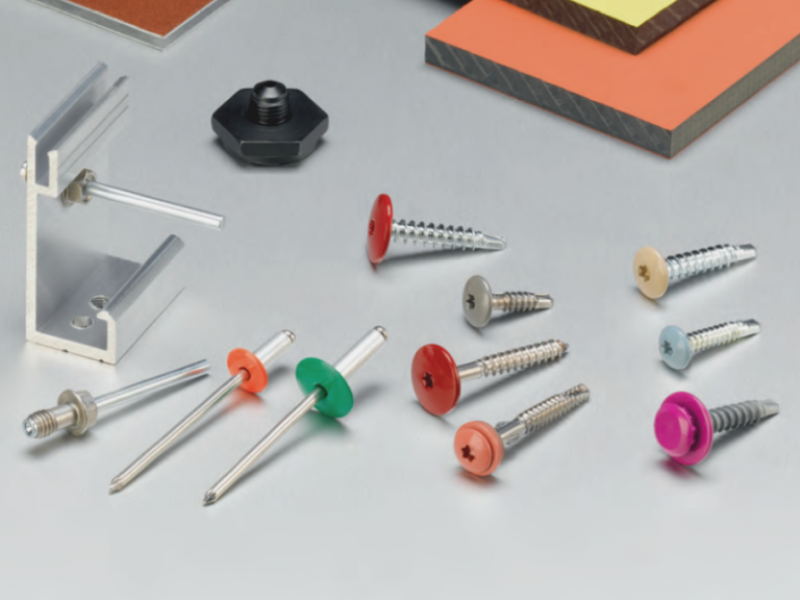

Eurofix Colour-matched Rivets
CFR** Coloured Rivet |
CFFPS Rivet Sleeve |
Code |
Description |
Lead Time |
MOQ |
---|---|---|---|
CFR14 | EUROFIX 14mm D15 Rivet (Colour), 250 Pack | 3-4 Weeks | 1 Pack |
CFR18 | EUROFIX 18mm D15 Rivet (Colour), 250 Pack | 3-4 Weeks | 1 Pack |
CFFPS | EUROFIX 10mm Fixed Point Rivet Sleeve, 200 Pack | 3-4 Weeks | 1 Pack |

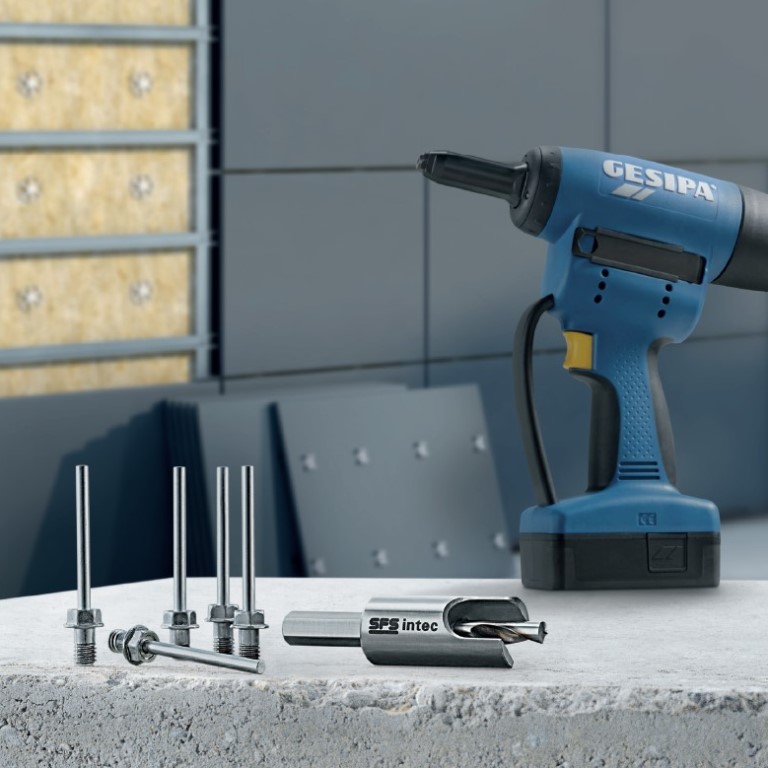

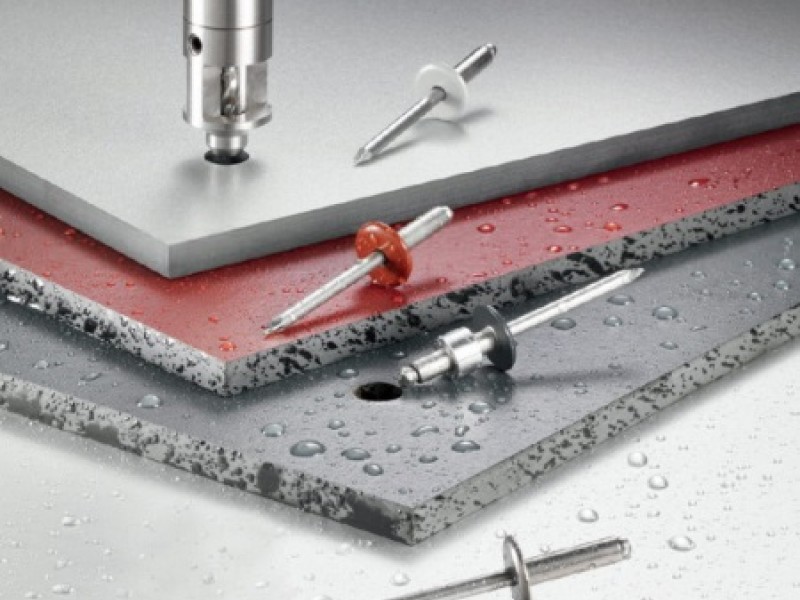

Eurofix Rivet Tools
CFDB10 10mm Drill Bit |
CFDB51 Replacement Bit |
CFCT10 Centralising Tool |
Code |
Description |
Lead Time |
MOQ |
---|---|---|---|
CFDB10 | EUROFIX 10mm Rivet Fix Drill Bit (To Drill Panel) | 3-4 Weeks | 1 Bit |
CFDB51 | EUROFIX 5.1mm Replacement Bit (To Suit CFCT10) | 3-4 Weeks | 1 Bit |
CFCT10 | EUROFIX 10mm Centralising Tool (To Drill Framing) | 3-4 Weeks | 1 Tool |

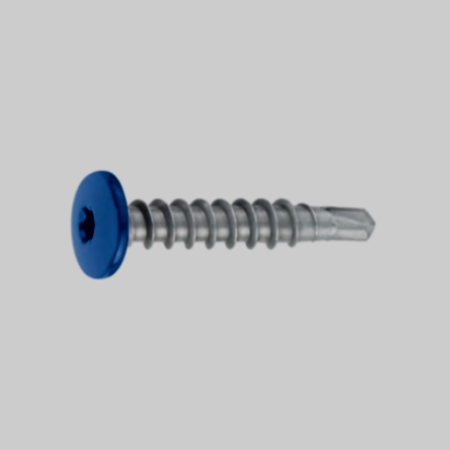

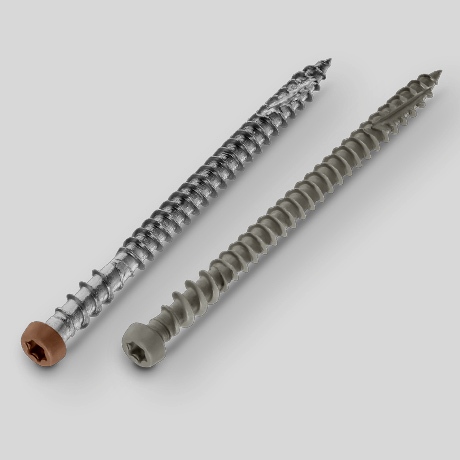

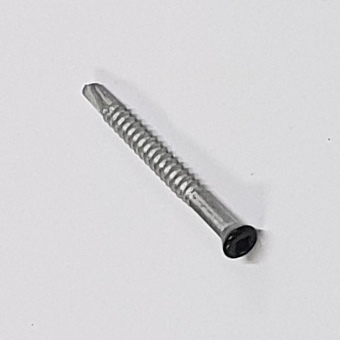

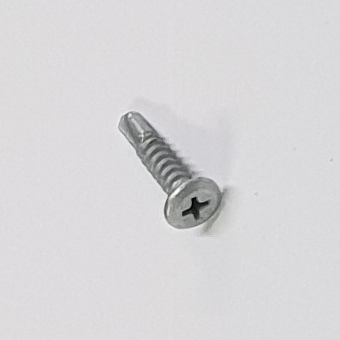

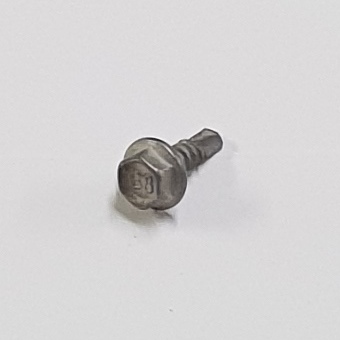

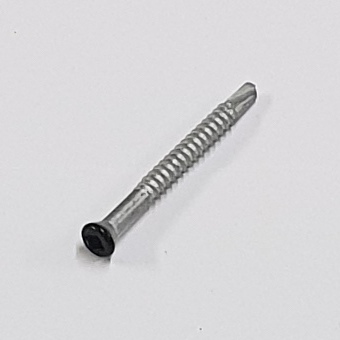

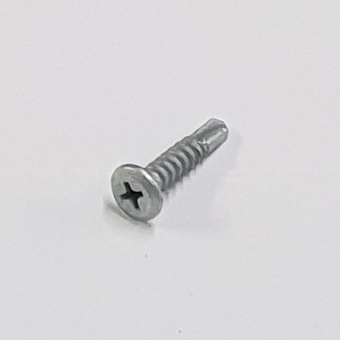

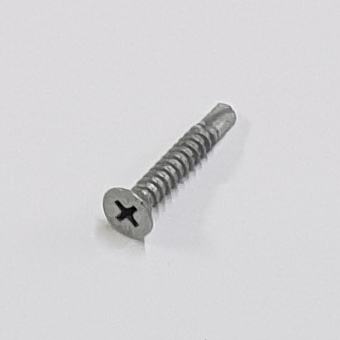

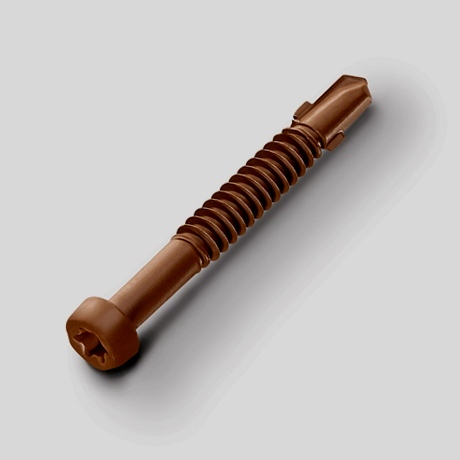

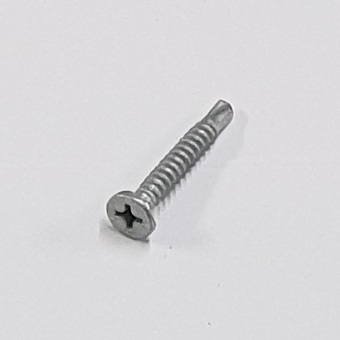

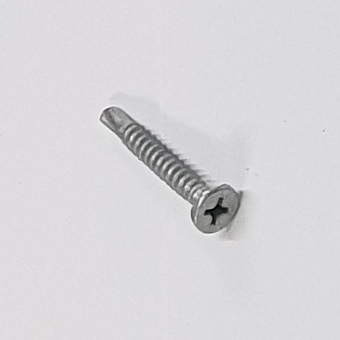

Eurofix Colour-matched Screws
CFM*** Coloured Screws |
Code |
Description |
Lead Time |
MOQ |
---|---|---|---|
CFM30 | EUROFIX 30mm Metal Screw (Colour), 250 Pack | 3-4 Weeks | 1 Pack |
CFMW30 | EUROFIX 30mm Screw & Washer (Colour), 250 Pack | 3-4 Weeks | 1 Pack |
Gallery
Downloads
Support
Customer Support
For same day design assistance and technical support please contact our sales team directly on the below contact details. All our sales and technical staff are locally based so we can provide the best possible service and support for your project. You can also request a technical data sheet or project quotation using the below email links;
Frank Kutra |
Product Manager |
1300 945 123 |
0477 966 027 |
LinkedIn Profile |
