Overview

Fire Resistant Aluminium Composite Panel

Leading BLUECHIP’s product portfolio is ULTRABOND FR, a 4mm thick fire resistant aluminium composite panel comprising of a 3mm mineral filled core, sandwiched between two prefinished aluminium or other natural metal cover sheets. ULTRABOND FR aluminium composite panel, has been thoroughly tested to Australian Standards by the NATA approved CSIRO and Exova Warringtonfire including full-scale testing to AS 5113. It is ABCB CodeMark certified for compliance with the BCA/NCC ensuring you are specifying a quality assured product tested to Australian standards.


CodeMark Certified (Currently Under Review. Contact Us For Further Information)

ULTRABOND FR fire resistant aluminium composite panel is ABCB CodeMark certified to comply with the building code of Australia ensuring you are specifying a quality assured product tested to Australian standards.

***CERTMARK (CMI) STATEMENT REGARDS ULTRABOND FR CODEMARK CERTIFICATE & ONGOING COMPLIANCE***


AS 5113 Fire Testing

ULTRABOND FR fire resistant aluminium composite panel has been thoroughly tested to relevant Australian fire standards by NATA approved CSIRO and Exova Warringtonfire including full-scale testing to AS 5113.


Unlimited Custom Colours

ULTRABOND FR fire resistant aluminium composite panel has unlimited colour options, we are able to match any colour from any other colour range. With small MOQ’s and fast lead times you can realise your vision.


Local Stock Available

ULTRABOND FR fire resistant aluminium composite panel is stocked in a range of standard solid colours and metallic colours. With approximately 100,000m2 available Australia wide for fast delivery at all times.


PVDF Paint System

ULTRABOND FR fire resistant aluminium composite panel only uses the highly recognises PVDF Kynar 500 or FEVE paint systems known for their high durability and optimum resistance to weather and industrial pollution.


Low Maintenance

The ULTRABOND FR fire resistant aluminium composite panel finish has undergone 40+ years of exposure testing which is continuing to confirm the superior properties of fluoropolymer coatings.


Cost Effective

ULTRABOND FR fire resistant aluminium composite panel has enjoyed consistent growth not only due to the desire for a clean and modern look, but also a product offering rapid cost effective installation.


Manufacturer's Warranty

ULTRABOND FR fire resistant aluminium composite panel has a long track record of consistency, reliability and quality allowing us to offer up to 15 year's warranty when installed by a licensed installer.


Does your project require Non-combustible cladding?

If your project is type A or B construction then all external cladding is required to be non-combustible in accordance with NCC 2019 Specification C1.9. ULTRABOND FR is not deemed non-combustible however all the below products are;




Finishes

UB9701 Silver Ice Metallic
UB9701 Silver Ice Metallic
UB9205 Champagne Metallic
UB9205 Champagne Metallic
UB9134 Smoke Silver Metallic
UB9134 Smoke Silver Metallic
UB9137 Dark Grey Metallic
UB9137 Dark Grey Metallic
UB9308 Bronze Metallic
UB9308 Bronze Metallic
UB4344 Medium Bronze Metallic
UB4344 Medium Bronze Metallic
UB4150 Gold Metallic
UB4150 Gold Metallic
UB4145 Antique Gold Metallic
UB4145 Antique Gold Metallic
UB4370 Satin Brown Metallic
UB4370 Satin Brown Metallic
UB5292 Satin Black Metallic
UB5292 Satin Black Metallic
UB9809 Copper Metallic
UB9809 Copper Metallic
UB4190 Tangerine Metallic
UB4190 Tangerine Metallic
UB4420 Blue Grey Metallic
UB4420 Blue Grey Metallic
UB4540 Green Metallic
UB4540 Green Metallic
UB9031 Jade Metallic
UB9031 Jade Metallic
UB1005 Snow White
UB1005 Snow White
UB1025 Pearl White Gloss
UB1025 Pearl White Gloss
UB9902 Pure White
UB9902 Pure White
UB9702 Bold Cream
UB9702 Bold Cream
UB9103 Natural Cream
UB9103 Natural Cream
UB1320 Opulent Beige
UB1320 Opulent Beige
UB1310 Classic Beige
UB1310 Classic Beige
UB1715 Subtle Grey
UB1715 Subtle Grey
UB9304 Cool Grey
UB9304 Cool Grey
UB9504 Crux Grey
UB9504 Crux Grey
UB1740 Rune Grey Gloss
UB1740 Rune Grey Gloss
UB1255 Riddle Grey
UB1255 Riddle Grey
UB1266 Thriller Grey
UB1266 Thriller Grey
UB1270 Monument Grey
UB1270 Monument Grey
UB9130 Enigma Black
UB9130 Enigma Black
UB1295 Formal Black Gloss
UB1295 Formal Black Gloss
UB1510 Fresh Green
UB1510 Fresh Green
UB1520 Leaf Green
UB1520 Leaf Green
UB1540 Spring Green
UB1540 Spring Green
UB1580 Grass Green
UB1580 Grass Green
UB1590 Energy Green
UB1590 Energy Green
UB1588 Park Green
UB1588 Park Green
UB1595 Pine Green
UB1595 Pine Green
UB1410 Coral Blue
UB1410 Coral Blue
UB9207 Harbour Blue
UB9207 Harbour Blue
UB1430 Sky Blue
UB1430 Sky Blue
UB1420 Reef Blue Gloss
UB1420 Reef Blue Gloss
UB9107 Bay Blue
UB9107 Bay Blue
UB1460 Marine Blue
UB1460 Marine Blue
UB1495 Deep Sea Blue
UB1495 Deep Sea Blue
UB1490 Lake Blue
UB1490 Lake Blue
UB1480 Horizon Violet
UB1480 Horizon Violet
UB1110 Spirit Yellow
UB1110 Spirit Yellow
UB1140 Bright Yellow
UB1140 Bright Yellow
UB1160 Golden Yellow
UB1160 Golden Yellow
UB9011 Brimstone Orange
UB9011 Brimstone Orange
UB1155 Sunset Orange
UB1155 Sunset Orange
UB1190 Bright Orange
UB1190 Bright Orange
UB1677 Poppy Red
UB1677 Poppy Red
UB1670 Anzac Red Gloss
UB1670 Anzac Red Gloss
UB1685 Gallantry Red
UB1685 Gallantry Red
UB1684 Fortitude Red Gloss
UB1684 Fortitude Red Gloss
UB1690 Noble Red
UB1690 Noble Red
UB1686 Power Red
UB1686 Power Red
UB1620 Rose Pink
UB1620 Rose Pink
UB1640 Royal Pink
UB1640 Royal Pink
UB1350 Ornate Brown
UB1350 Ornate Brown
UB9108 Elegant Brown
UB9108 Elegant Brown
UB1283 Cultured Grey Brown
UB1283 Cultured Grey Brown
UB1370 Majestic Brown
UB1370 Majestic Brown
UB7010 Sparkling White Gloss
UB7010 Sparkling White Gloss
UB4725 Sparkling Light Grey
UB4725 Sparkling Light Grey
UB7250 Sparkling Dark Grey
UB7250 Sparkling Dark Grey
UB7295 Sparkling Black Gloss
UB7295 Sparkling Black Gloss
UB7470 Sparkling Blue Gloss
UB7470 Sparkling Blue Gloss
UB7650 Sparkling Red Gloss
UB7650 Sparkling Red Gloss
UB7090 Chromatic Ice Gold
UB7090 Chromatic Ice Gold
UB7160 Chromatic Antique Gold
UB7160 Chromatic Antique Gold
UB7350 Chromatic Rustic Bronze
UB7350 Chromatic Rustic Bronze
UB7290 Chromatic Galaxy Silver
UB7290 Chromatic Galaxy Silver
UB7450 Chromatic Diamond Purple
UB7450 Chromatic Diamond Purple
UB7430 Chromatic Sunset Purple
UB7430 Chromatic Sunset Purple
UB7480 Chromatic Fluorescent Violet
UB7480 Chromatic Fluorescent Violet
UB7510 Chromatic Avatar Green
UB7510 Chromatic Avatar Green
UB7490 Chromatic Ocean Blue
UB7490 Chromatic Ocean Blue
UB7440 Chromatic Lighthouse Blue
UB7440 Chromatic Lighthouse Blue
UB7170 Chromatic Honey Gold
UB7170 Chromatic Honey Gold
UB7180 Chromatic Tiger Orange
UB7180 Chromatic Tiger Orange
UB7190 Chromatic Sahara Copper
UB7190 Chromatic Sahara Copper
UB7690 Chromatic Ancient Red
UB7690 Chromatic Ancient Red
UB8100 Soft Bamboo
UB8100 Soft Bamboo
UB8330 American Pine
UB8330 American Pine
UB8300 Classic Oak
UB8300 Classic Oak
UB8310 Rustic Pine
UB8310 Rustic Pine
UB8320 Unique Beli
UB8320 Unique Beli
UB8340 Vintage Walnut
UB8340 Vintage Walnut
UB8355 Elegant Teak
UB8355 Elegant Teak
UB8385 Ascot Teak
UB8385 Ascot Teak
UB8650 Noble Bloodwood
UB8650 Noble Bloodwood
UB8395 Polished Rengas
UB8395 Polished Rengas
UB8399 Majestic Alder
UB8399 Majestic Alder
UB8700 Iron Gum
UB8700 Iron Gum
UB6480 Marble Sapphire Blue
UB6480 Marble Sapphire Blue
UB6330 Marble Quartz Beige
UB6330 Marble Quartz Beige
UB6385 Marble Cashmir Beige
UB6385 Marble Cashmir Beige
UB6170 Marble Citrine Gold
UB6170 Marble Citrine Gold
UB6060 Marble Pearl White
UB6060 Marble Pearl White
UB6770 Marble Lunar Grey
UB6770 Marble Lunar Grey
UB6285 Marble Diamond Black
UB6285 Marble Diamond Black
UB6290 Marble Septarian Black
UB6290 Marble Septarian Black
UB6390 Marble Bronzite Brown
UB6390 Marble Bronzite Brown
UB6640 Granite Jasper Red
UB6640 Granite Jasper Red
UB6666 Granite Volcanic Red
UB6666 Granite Volcanic Red
UB6310 Granite Aurisina Beige
UB6310 Granite Aurisina Beige
UB6360 Granite Amendoa Beige
UB6360 Granite Amendoa Beige
UB6280 Granite Magenite Black
UB6280 Granite Magenite Black
UB6080 Granite Colonial White
UB6080 Granite Colonial White
UB6710 Travertine Blanco White
UB6710 Travertine Blanco White
UB6305 Travertine Calico Cream
UB6305 Travertine Calico Cream
UB6315 Travertine Atlas Beige
UB6315 Travertine Atlas Beige
UB5790 Zinc Light
UB5790 Zinc Light
UB5220 Zinc Dark
UB5220 Zinc Dark
UB5260 Zinc Charcoal
UB5260 Zinc Charcoal
UB5600 Zinc Blush
UB5600 Zinc Blush
UB5360 Corten
UB5360 Corten
UB2200 Brushed Silver
UB2200 Brushed Silver
UB5150 Brushed Copper
UB5150 Brushed Copper

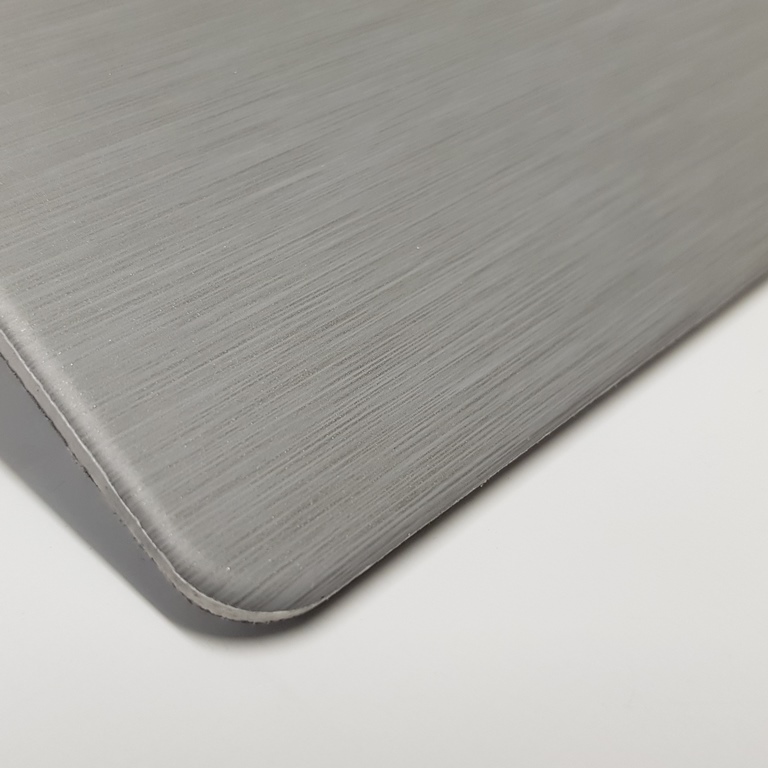

UB5740 Blue Grey Zinc
UB5740 Blue Grey Zinc

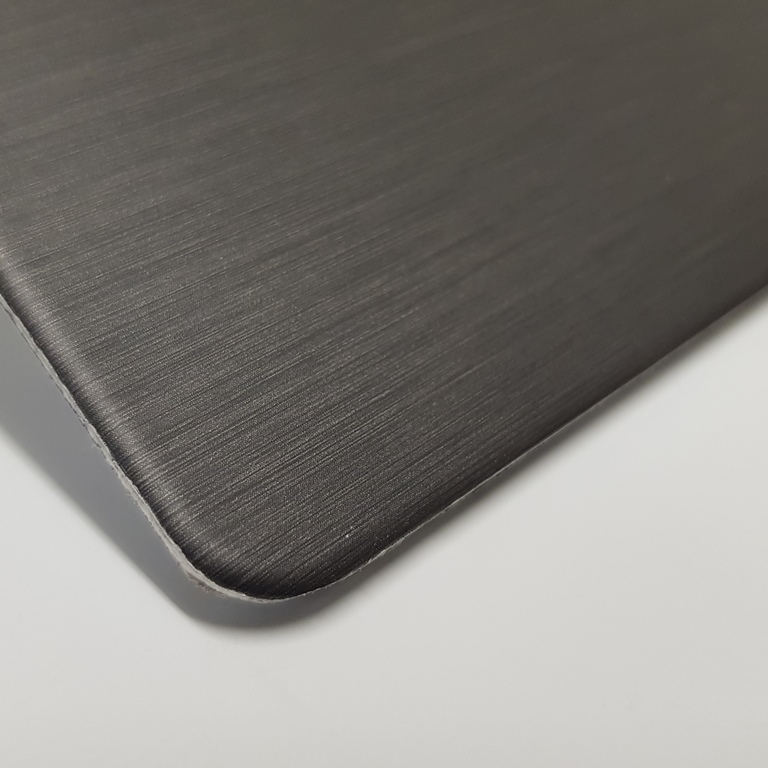

UB5760 Graphite Grey Zinc
UB5760 Graphite Grey Zinc
UB5700 Glacier Grey Zinc
UB5700 Glacier Grey Zinc
UB5400 Smokey Blue Zinc
UB5400 Smokey Blue Zinc
UB5500 Gannett Green Zinc
UB5500 Gannett Green Zinc
UB5650 Sonama Red Zinc
UB5650 Sonama Red Zinc
UB5280 Onyx Black Zinc
UB5280 Onyx Black Zinc

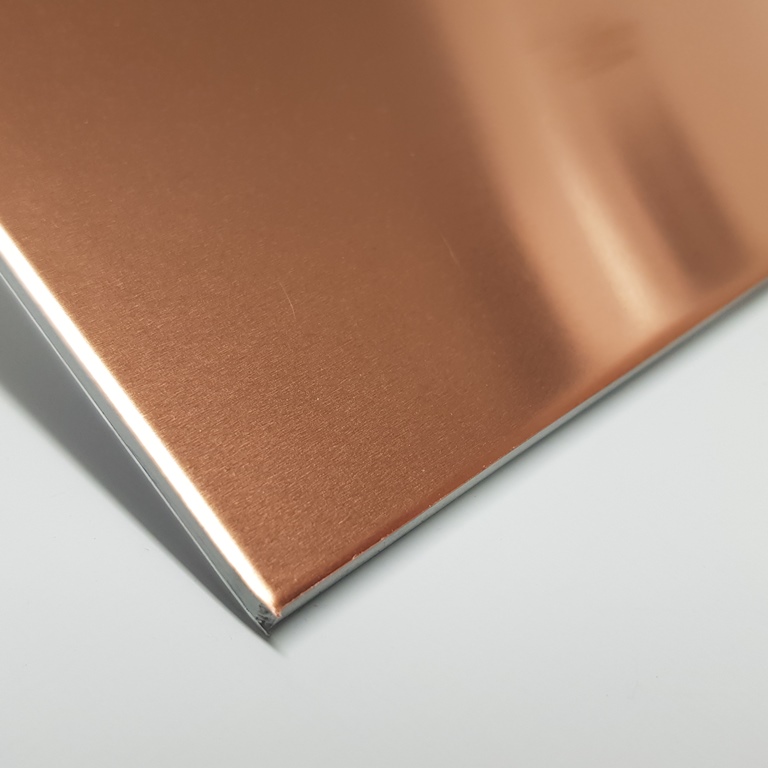

UB5160 Natural Copper
UB5160 Natural Copper
UB5755 Stainless Steel Opaque
UB5755 Stainless Steel Opaque

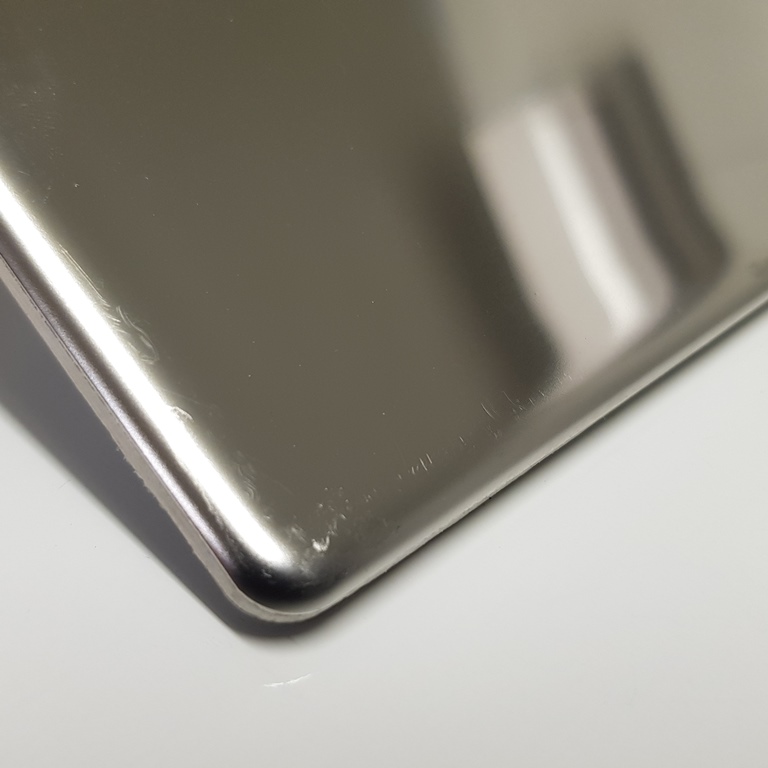

UB5800 Stainless Steel Mirror
UB5800 Stainless Steel Mirror
UB5840 Stainless Steel Longline
UB5840 Stainless Steel Longline
Unlimited Custom Colours
Unlimited Custom Colours

Availability

Availability

Description

Sheet Sizes

Lead Time

MOQ

ULTRABOND FR Metallic Colours UB9701, UB9205,

UB9134, UB9137, UB9308, UB4150, UB9809

2500, 3200, 4000 x 1570mm

Stock

1 Sheet

ULTRABOND FR Solid Colours UB1005, UB9902,

UB1255, UB9130, UB1460, UB1677, UB1190, UB1140

2500, 3200, 4000 x 1570mm

Stock 1 Sheet

ULTRABOND FR Non-stock & Custom Colours

Custom Lengths x 1250mm

Custom Lengths x 1570mm

8-10 Weeks

300m2

ULTRABOND FR Sparkling & Chromatic Colours

Custom Lengths x 1250mm

Custom Lengths x 1570mm

8-10 Weeks

300m2

ULTRABOND FR Imitation Finishes

Custom Lengths x 1220mm

Custom Lengths x 1500mm

8-10 Weeks

300m2

ULTRABOND FR Natural Metal Finishes

Custom Lengths x 1000mm

10-12 Weeks

300m2



Accessories

Code

Description

Lead Time

MOQ

UZLW58

ULTRAZED 24mm Long Z-angle (White Finish), 5.8m Length

Stock

20 Lengths

UZSM58

ULTRAZED 22mm Short Z-angle (Mill Finish), 5.8m Length

Stock

20 Lengths

UZA2020

ULTRAZED 20 x 20mm Standard Angle (Mill Finish), 5.8m Length

Stock

20 Lengths

UZA4022

ULTRAZED 40 x 22mm Standard Angle (Mill Finish), 5.8m Length

Stock

20 Lengths

US402060 ULTRASTIFF 40 x 20mm Panel Stiffener (Mill Finish, 5.8m Length Stock 1 Length
TT704412 BLUECHIP 7044 ACXplus Stiffener Tape, 25m Roll Stock 1 Roll
GVHEX16 GALVANISED 16mm 10-16 Hex Head, 1000 Pack Stock 1 Pack
GVWFR22 GALVANISED 22mm x 10-16 Wafer Screw, 1000 Pack Stock 1 Pack



System Components
