Overview

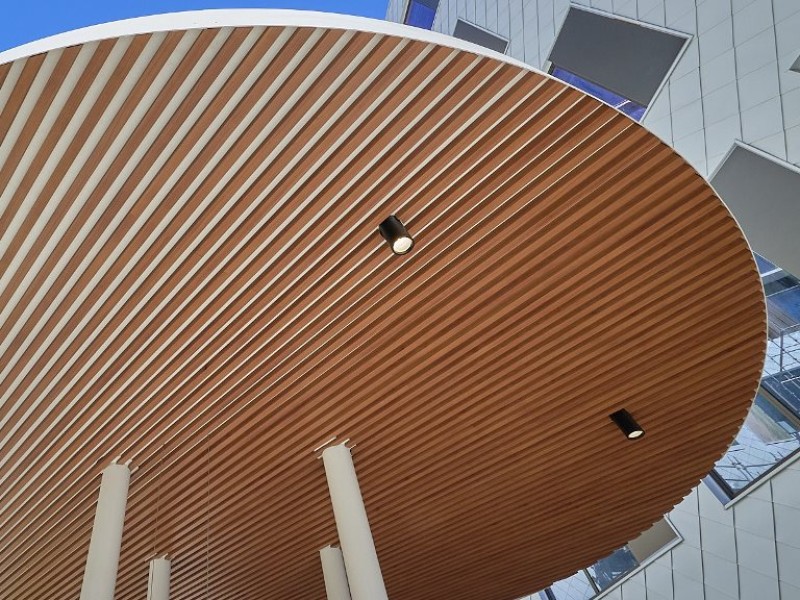

Non-combustible Timber Battens

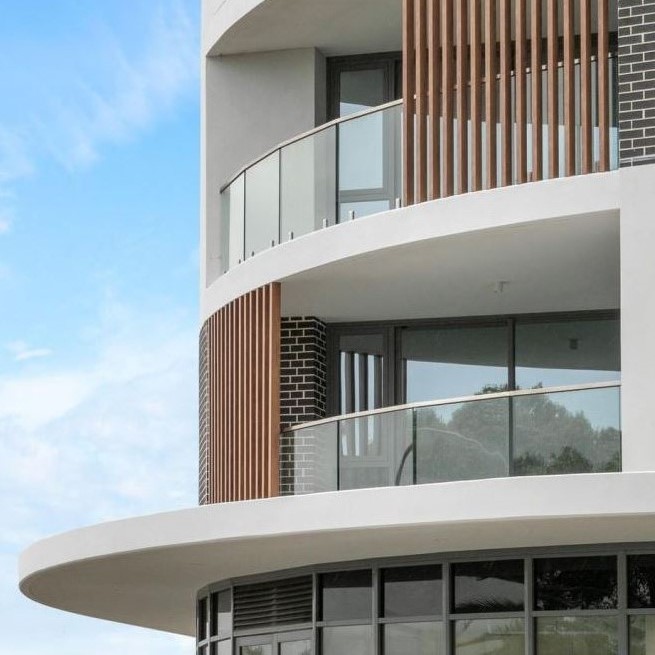

ULTRAWOOD non-combustible timber battens are available in a range of solid aluminium profiles providing a reliable and attractive modern facade alternative to other commercial cladding products. ULTRAWOOD battens have been specifically designed by experienced commercial facade professionals to meet the demands of today’s facade industry. Australian made using the finest raw materials and finish options, ULTRAWOOD battens can be secret-fixed and offer an unprecedented level of quality, safety, and longevity with an extensive range of matt-finish realistic timber colours, available in both standard and custom sizes.


AS 1530.1 Non-Combustible

ULTRAWOOD products are made of 100% solid aluminium which is totally non-combustible to AS 1530.1. Architects, engineers, and tenants can be assured ULTRAWOOD will not burn or contribute to fire spread.


2-piece Installation

The ULTRAWOOD batten profiles have been intelligently designed to provide excellent usability such as a simple 2-piece clip-together mounting system with inbuilt screw flutes for secret fixing and structural integrity.


Prefinished System

The entire ULTRAWOOD range is pre-finished. This means there is no requirement for painting or onsite finishing. Our finish options are attractive and durable – guaranteed to stand the test of time.


100% Australian Made

ULTRAWOOD is a 100% Australian owned, designed and made product, which contributes to it's outstanding quality and fast lead times. Using ULTRAWOOD aids all aspects of the Australian economy


Environmentally Sustainable

ULTRAWOOD solid aluminium is a 100% recyclable product. Energy, emissions, wastage and materials are saved in every aspects of the product from manufacturing, to, delivery, installation and recycling.


Minimal Fabrication

ULTRAWOOD battens can be ordered to custom lengths which eliminates additional fabrication. The base clip is fixed to the main structure before the battens are simply interlocked together and the end-caps screwed into place.


Incredible Aesthetics

ULTRAWOOD battens come in 6 different sizes so architects can mix-and-match and use different lengths for infinite design possibilities. Add in a wide range of inspiring and realistic timber finishes and the design options are endless.


Industry Leading Warranty

ULTRAWOOD’s 10 year product warranty is one of the longest of any facade product on the market today. Clients can be confident that their facade will remain attractive and durable for years to come.




Availability

Product Range

Specification Code: UW*B5050 ULTRAWOOD 50 x 50mm Batten

Specification Code: UW*B10050 ULTRAWOOD 100 x 50mm Batten
Specification Code: UW*B15050 ULTRAWOOD 150 x 50mm Batten
Specification Code: UW*B20050 ULTRAWOOD 200 x 50mm Batten
Specification Code: UW*B25050 ULTRAWOOD 250 x 50mm Batten
Specification Code: UW*B30050 ULTRAWOOD 300 x 50mm Batten



Availability

Code

Description

Lead Time

MOQ

UW*BC65 ULTRAWOOD Batten Base Clip (Insert Colour), 6.5m Length 4-5 Weeks 1 Length
UW*UC65 ULTRAWOOD Batten U-channel (Insert Colour), 6.5m Length 4-5 Weeks 1 Length
UW*B5050 ULTRAWOOD 50 x 50mm Batten (Insert Colour), 6.5m Length 4-5 Weeks 1 Length
UW*B10050 ULTRAWOOD 100 x 50mm Batten (Insert Colour), 6.5m Length 4-5 Weeks 1 Length
UW*B15050 ULTRAWOOD 150 x 50mm Batten (Insert Colour), 6.5m Length 4-5 Weeks 1 Length
UW*B20050 ULTRAWOOD 200 x 50mm Batten (Insert Colour), 6.5m Length 4-5 Weeks 1 Length
UW*B25050 ULTRAWOOD 250 x 50mm Batten (Insert Colour), 6.5m Length 4-5 Weeks 1 Length
UW*B30050 ULTRAWOOD 300 x 50mm Batten (Insert Colour), 6.5m Length 4-5 Weeks 1 Length



Accessories

Code

Description

Lead Time

MOQ

UW*EXXX50 ULTRAWOOD XXX x 50mm Batten End Cap (Insert Colour) 4-5 Weeks 1 End Cap
CFM40X EUROFIX 40mm x 8g End Cap Screw (Insert Colour), 100 Pack 3-4 Weeks 1 Pack



(*) The asterix in the code denotes the specified type of finish to be applied to the aluminium extrusion as follows; U = Ultrawood Timber Colours, A = Anodised Colours, M = Material Colours and P = Powdercoat Colours.



Colour Chart

UW0123 Alabama White
UW0123 Alabama White
UW0903 Ivory Coast
UW0903 Ivory Coast
UW1315 Miry Oak
UW1315 Miry Oak
UW0402 Dusty Balsa
UW0402 Dusty Balsa
UW2015 Tasmanian Oak
UW2015 Tasmanian Oak
UW1816 Rustic Pine
UW1816 Rustic Pine
UW0615 Golden Oak
UW0615 Golden Oak
UW0120 African Teak
UW0120 African Teak
UW0813 Honey Maple
UW0813 Honey Maple
UW1907 Banjo Gum
UW1907 Banjo Gum
UW0515 English Oak
UW0515 English Oak
UW2311 Woodstock
UW2311 Woodstock
UW0406 Douglas Fir
UW0406 Douglas Fir
UW1903 Southern Cyprus
UW1903 Southern Cyprus
UW0220 Burmese Teak
UW0220 Burmese Teak
UW1005 Japanese Elm
UW1005 Japanese Elm
UW1540 Dark Cedar
UW1540 Dark Cedar
UW1102 Khaya Bean
UW1102 Khaya Bean
UW1523 Old Walnut
UW1523 Old Walnut
UW0223 Black Wenge
UW0223 Black Wenge
UW1813 Rich Mahogany
UW1813 Rich Mahogany
UW1809 Red Iroko
UW1809 Red Iroko
UW1403 Native Cherry
UW1403 Native Cherry
UW2303 West Coast Cedar
UW2303 West Coast Cedar
UW0302 Coastal Blackwood
UW0302 Coastal Blackwood
UW1120 Kontiki Balsa
UW1120 Kontiki Balsa
UW0103 Alaskan Cedar
UW0103 Alaskan Cedar
UW1703 Queensland Cedar
UW1703 Queensland Cedar
UW1510 Meranti
UW1510 Meranti
UW2203 Vancouver Cedar
UW2203 Vancouver Cedar
UW0318 Californian Redwood
UW0318 Californian Redwood
UW2503 Yukon Cedar
UW2503 Yukon Cedar
UW1410 Nannup Jarrah
UW1410 Nannup Jarrah
UW0202 Bowral Bluegum
UW0202 Bowral Bluegum
UW1311 Manjimup Karri
UW1311 Manjimup Karri
UW1580 African Ebony
UW1580 African Ebony
UL0102 Authentic Brushed
UL0102 Authentic Brushed
UL0116 Authentic Polished
UL0116 Authentic Polished
UL0114 Authentic Natural
UL0114 Authentic Natural
UL0318 Coral Rust
UL0318 Coral Rust
UL0118 Authentic Rust
UL0118 Authentic Rust
UL2118 Uluru Rust
UL2118 Uluru Rust
UL0418 Dark Rust
UL0418 Dark Rust
UL2102 Uluru Brushed
UL2102 Uluru Brushed
UL2116 Uluru Polished
UL2116 Uluru Polished
UL2114 Uluru Natural
UL2114 Uluru Natural
UL0202 Bronze Brushed
UL0202 Bronze Brushed
UL1502 Ochre Brushed
UL1502 Ochre Brushed
UL1514 Ochre Natural
UL1514 Ochre Natural

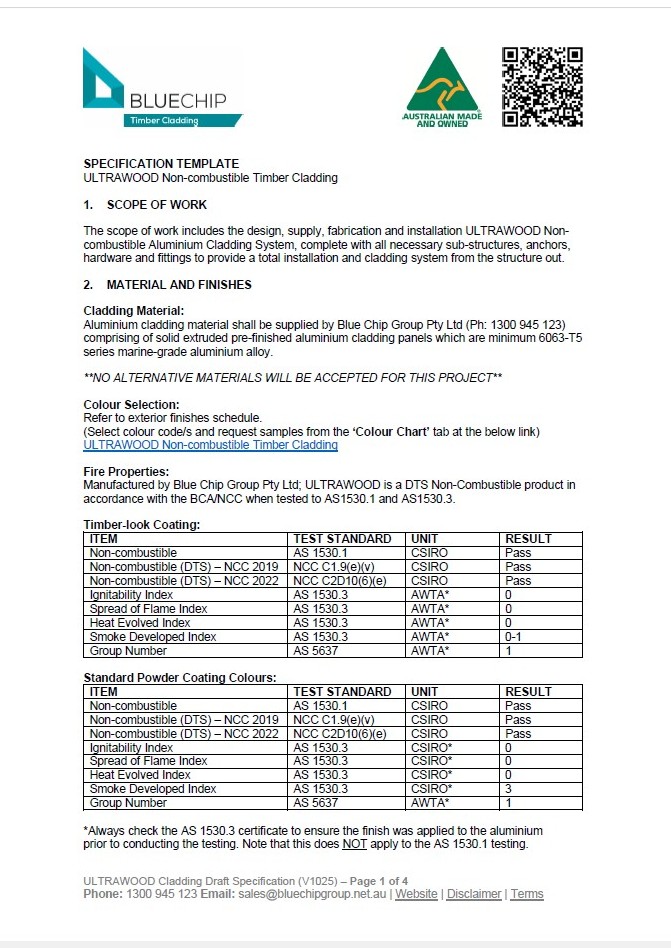

Downloads

Support

Customer Support

For same day design assistance and technical support please contact our sales team directly on the below contact details. All our sales and technical staff are locally based so we can provide the best possible service and support for your project. You can also request a technical data sheet or project quotation using the below email links;
