Overview

Rigid PIR Insulation Board

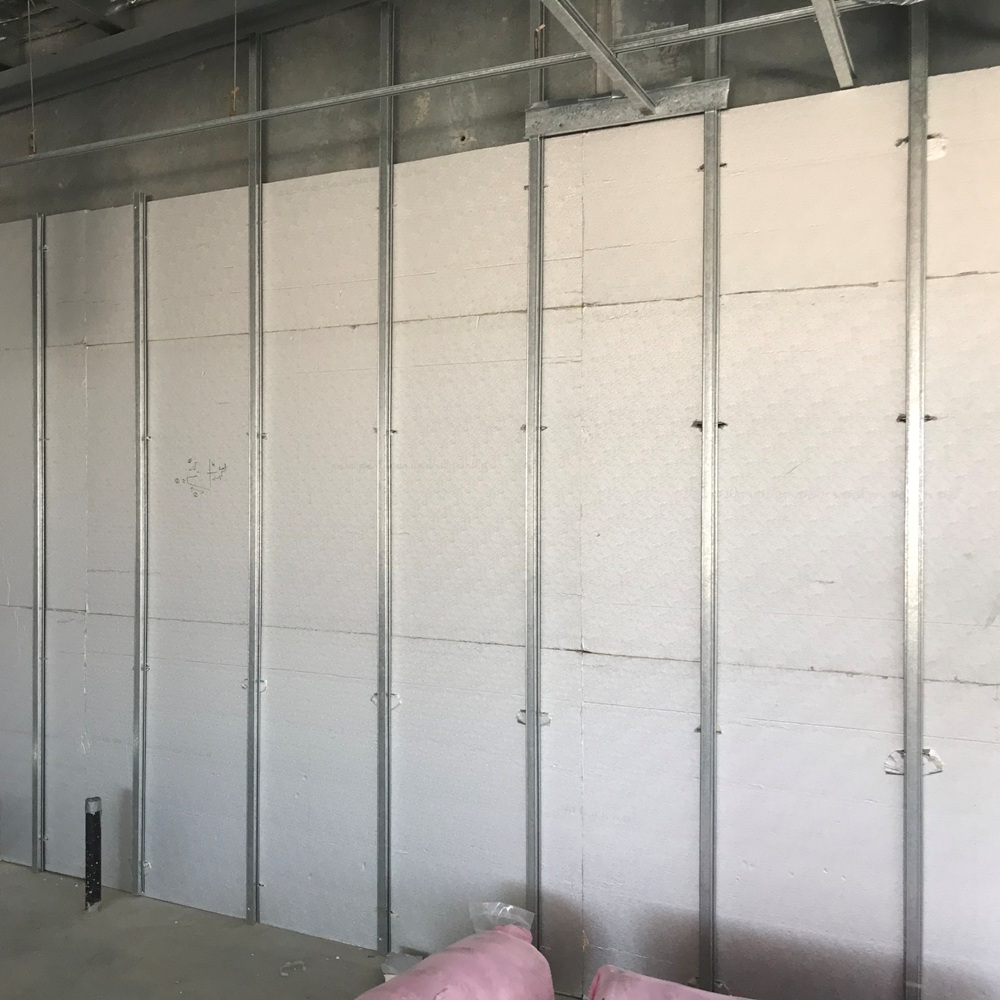

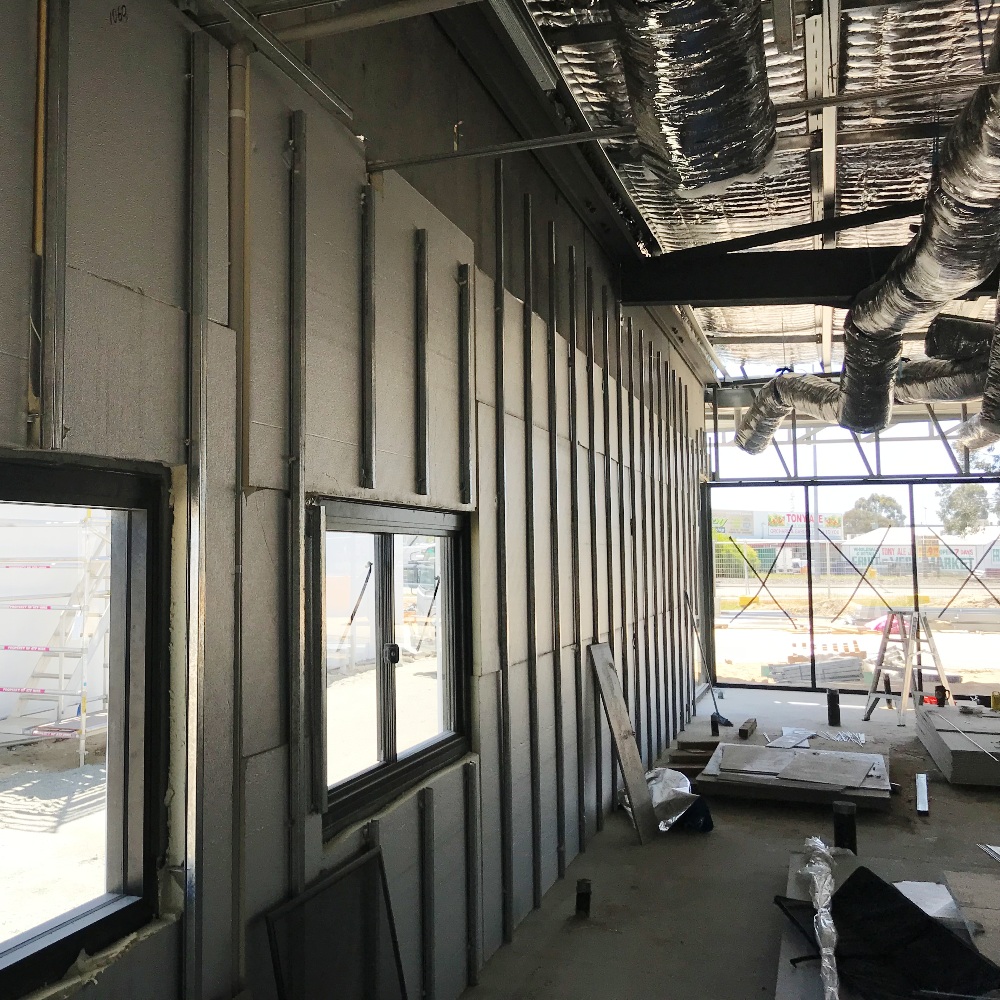

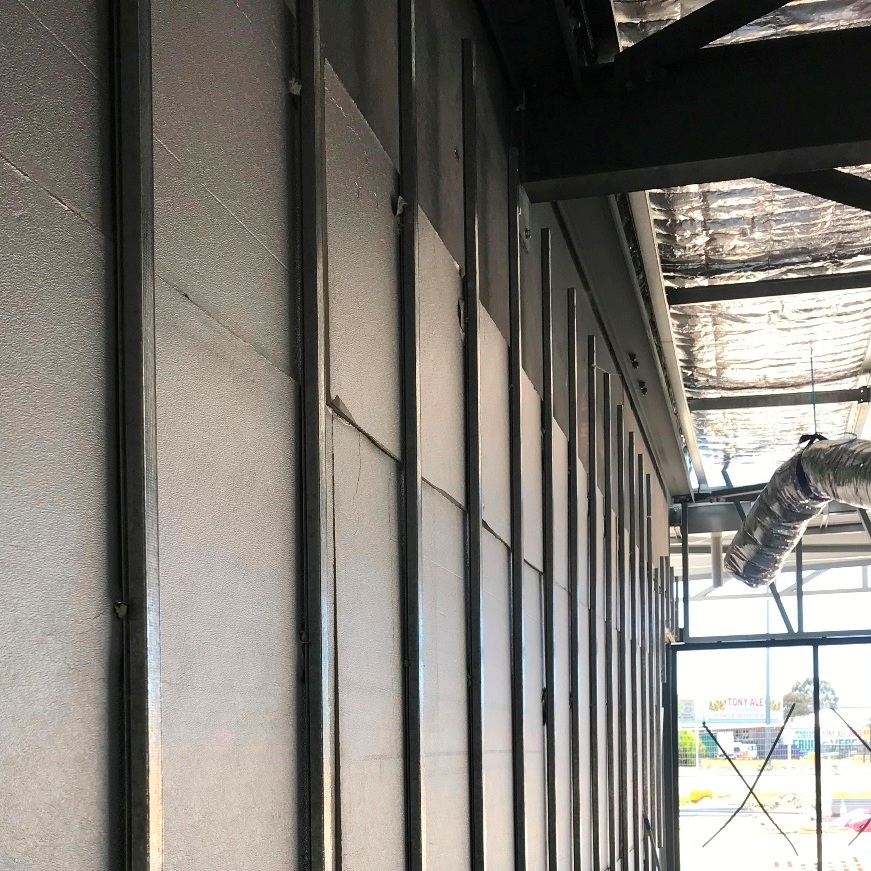

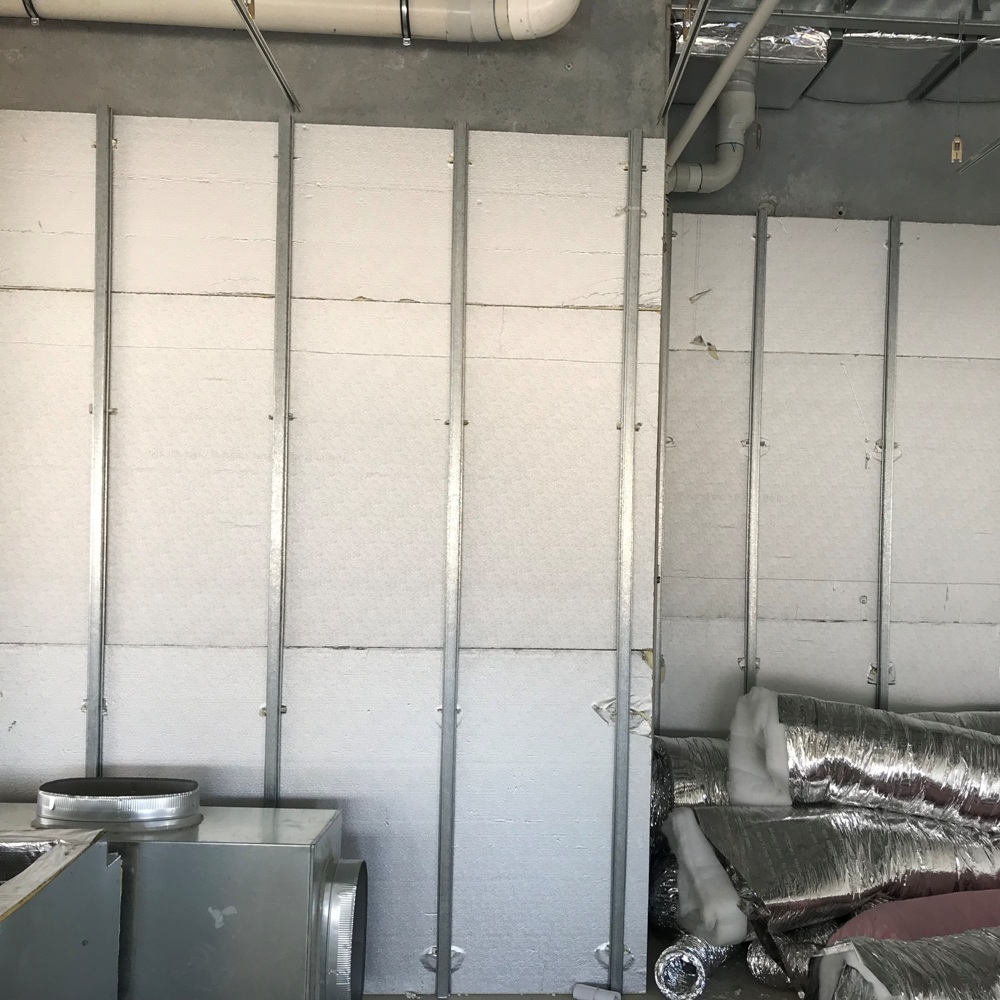

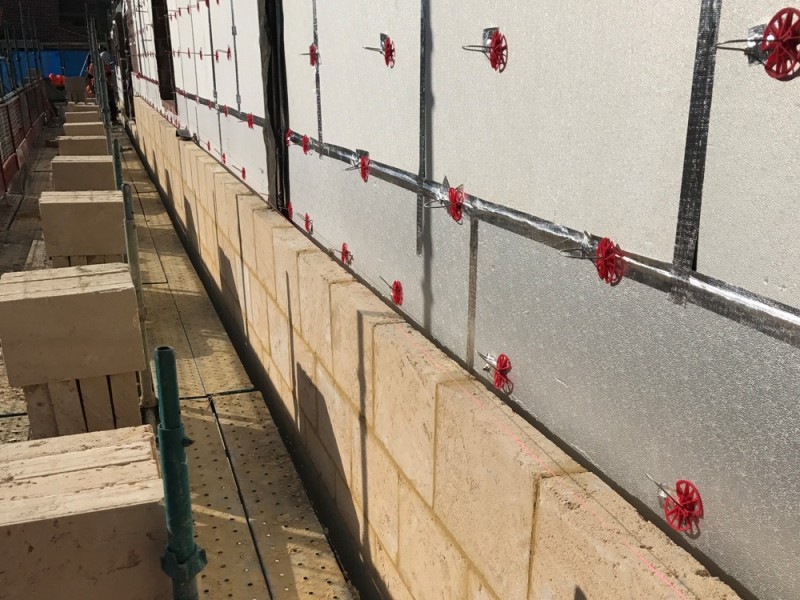

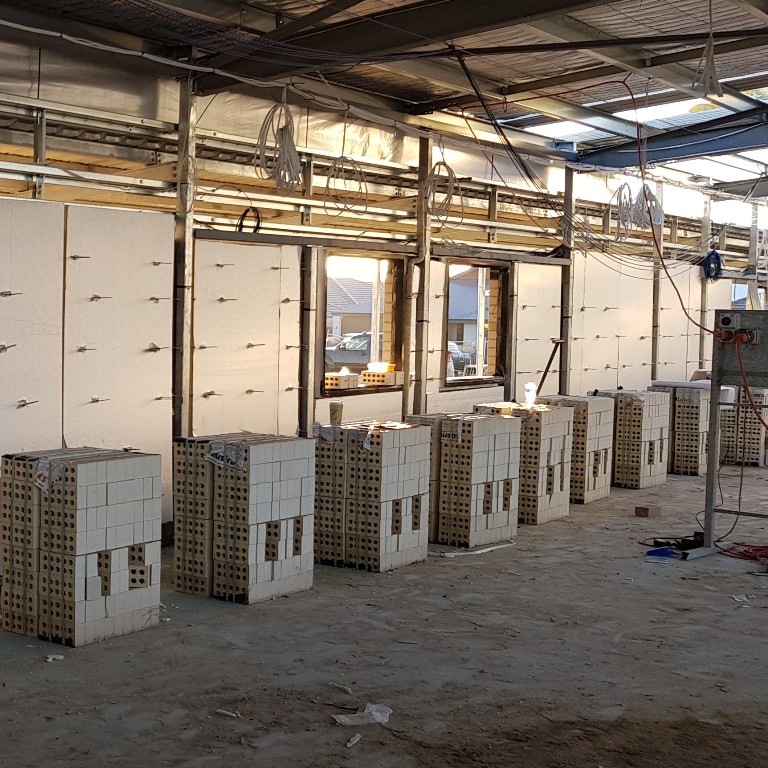

IBOARD rigid insulation board is composed of a closed-cell thermoset polyisocyanurate foam core with two reflective foil facings. Tested in accordance with AS/NZ standards to comply with BCA/NCC requirements in concealed applications, IBOARD rigid insulation is manufactured using CFC/HCFC-free blowing agents that have zero Ozone Depletion Potential (ODP). Providing superior fire safety and higher R-values from less thickness, IBOARD rigid insulation gives sustained thermal performance over time and is widely used in brick cavity, frame-wall and concealed soffit applications.


Superior Fire Performance

IBOARD rigid insulation offers superior results than alternative products when tested to AS 1530.3, the relevant Australian fire standard for concealed wall and soffit applications.


Superior Ageing Performance

Due to it's outstanding resistance to moisture and excellent compressive strength, IBOARD rigid insulation offers much better thermal ageing performance than other products.


100% Non-corrosive

Unlike some other insulation products, IBOARD core material is 100% non-corrosive and will not cause corrosion issues if it comes in contact with structural steel or fixings.


Zero Formaldehyde

IBOARD rigid insulation contians zero traces of formaldehyde and it is fibre-free making it non-irritant to the skin, non-allergenic and safer compared to other products.


Higher R-value

IBOARD rigid insulation provides excellent thermal properties with one of the lowest thermal conductivity ratings of any insulation material on the market at 0.022 W/mK.


Environmentally Friendly

IBOARD rigid insulation is manufactured in Europe under strict quality control using only CFC/HCFC free blowing agents which have Zero Ozone Depletion Potential (ODP).

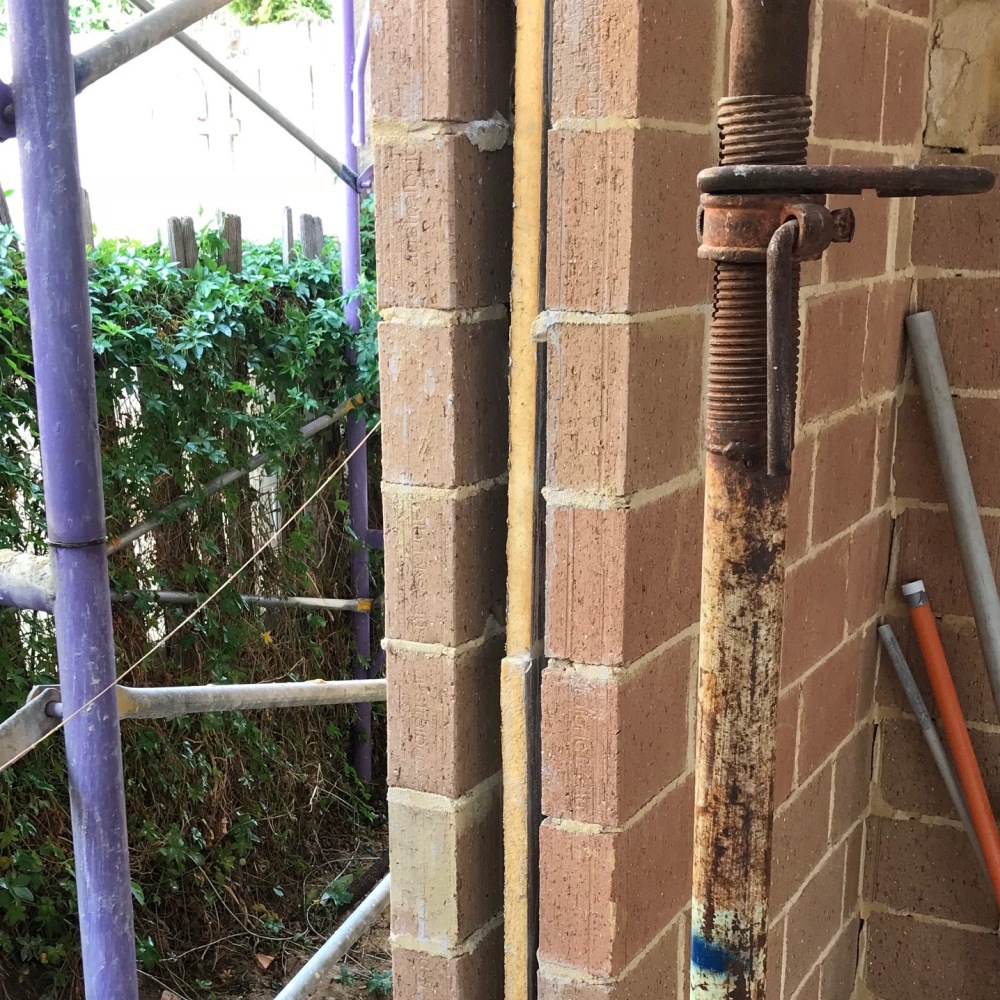

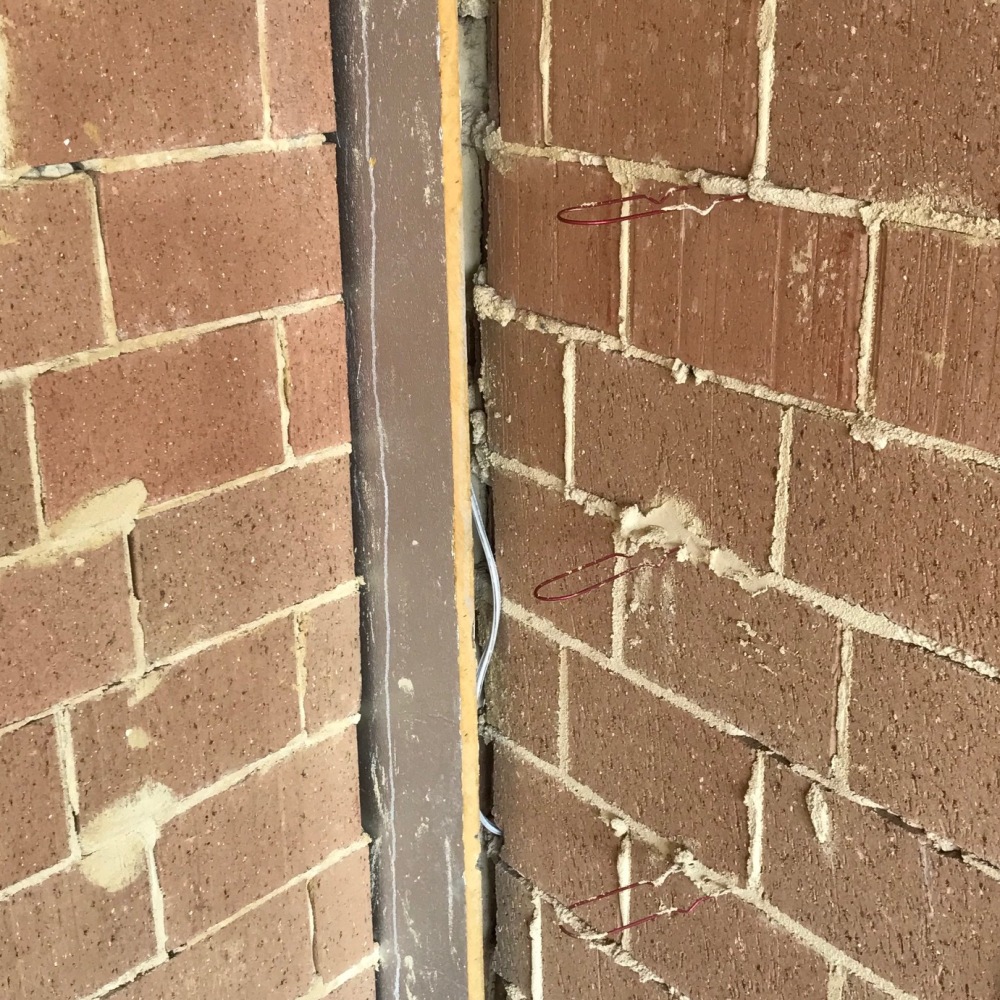

Clear Cavity Maintained

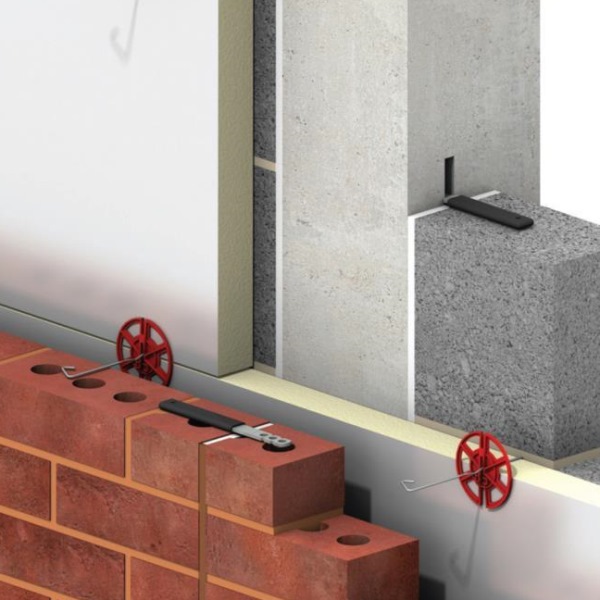

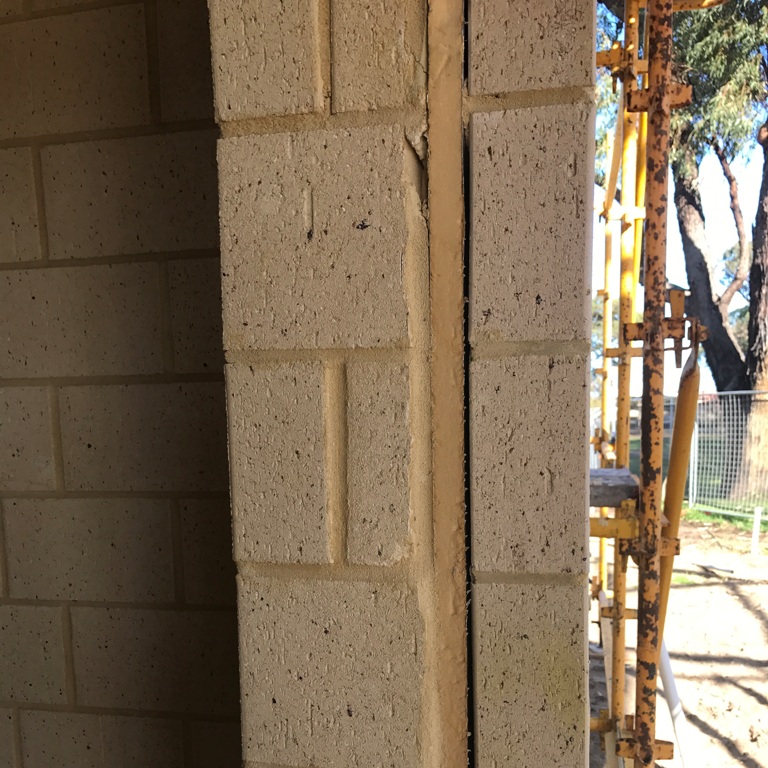

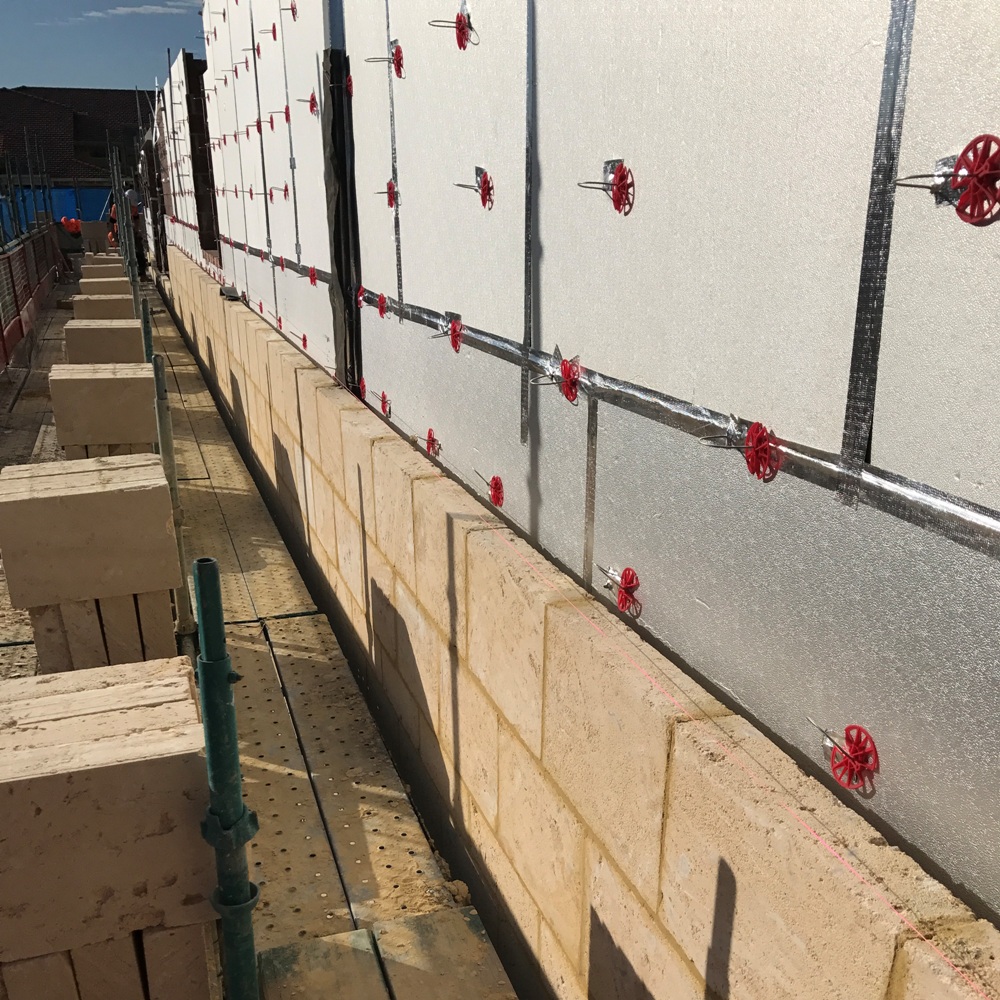

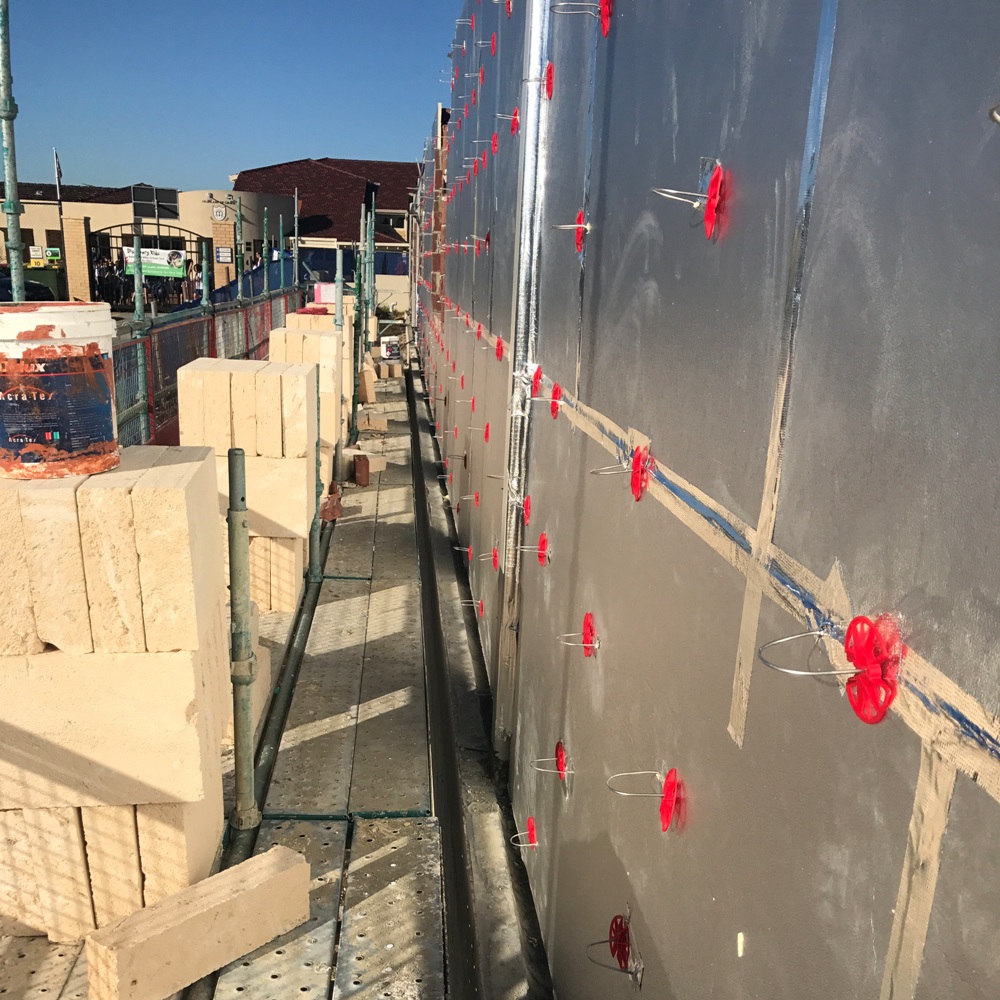

When IBOARD rigid insulation is used in wall cavity applications a clear cavity is still maintained making the cavity easily accessible for services such as electricity and water.


Micro Cell Technology

IBOARD core material has a much finer cell structure with extremely low water absorbtion compared to other products (<0.6%) so it's R-value is retained long-term and it is rot and mould proof.


*Does your project require Non-combustible materials?

If your project is required to be type A or B construction then all cladding, framing & insulation is required to be non-combustible. All the below cladding products are Deemed-to-Satisfy (DtS) non-combustible in accordance with NCC 2022, Clause C2D10 (Previously NCC 2019, Clause C1.9) and can be used anywhere a non-combustible material is required;

ULTRACORE IQ
Aluminium Core
ULTRASURE
Solid Aluminium
ULTRALIGN
Aluminium Cladding
ULTRALIGN
Aluminium Battens
ULTRANAMEL
Vitreous Enamel
EQUITONE
Through-colour FC
EQUITONE
Prefinished FC
NATURION
Natural-finish Panel
ULTRAWOOD
AS 1530.1 Cladding
ULTRAWOOD
AS 1530.1 Battens
BICEP & STUDTEK
Steel Facade System
BICEP & NVELOPE
Aluminium Framing
FIRESPAN
AS 1530.1 Sarking
IROCK
AS 1530.1 Insulation
IROCK PLUS
NC Soffit Insulation



Availability

Product Range

IBOARD
PIR Insulation
IBOARD
Cavity Retainer Clips
INSULTAPE
Reinforced Foil Tape



Availability

CodeR-value

Description

Lead Time

MOQ

IBS302312 R1.36

IBOARD 30mm PIR Insulation, 2270 x 1200mm

Stock

1 Board

IBS402312 R1.82 IBOARD 40mm PIR Insulation, 2270 x 1200mm Stock 1 Board
IBS502312 R2.27 IBOARD 50mm PIR Insulation, 2270 x 1200mm Stock 1 Board
IBS602312 R2.73 IBOARD 60mm PIR Insulation, 2270 x 1200mm Stock 1 Board
IBD702312 R3.18 IBOARD 70mm PIR Insulation, 2270 x 1200mm 3-5 Days 1 Board
IBD802312 R3.64 IBOARD 80mm PIR Insulation, 2270 x 1200mm 3-5 Days 1 Board
IBD902312 R4.09 IBOARD 90mm PIR Insulation, 2270 x 1200mm 3-5 Days 1 Board
IBD1002312 R4.55 IBOARD 100mm PIR Insulation, 2270 x 1200mm 3-5 Days 1 Board



Accessories

Code

Description

Lead Time

MOQ

ITP4850 INSULTAPE 48mm Reinforced Foil Tape, 50m Roll Stock 1 Roll
ITP7250 INSULTAPE 72mm Reinforced Foil Tape, 50m Roll Stock 1 Roll
ITP9650 INSULTAPE 96mm Reinforced Foil Tape, 50m Roll Stock 1 Roll
IUC250 IBOARD Universal Cavity Retainer Clip, 250 Pack Stock 1 Pack



Technical Data

Test Item

Standard

Result
Thermal Conductivity ASTM C518 0.022 W/mK
Emittance ASTM E408 0.05
Spread of Flame Index AS 1530.3 0
Smoke Developed Index AS 1530.3 2
Tensile Strength Perpendicular to Faces EN 1607 80 kPa
Compressive Strength EN 826 >110 kPa
