Overview

Vitreous Enamel Panel

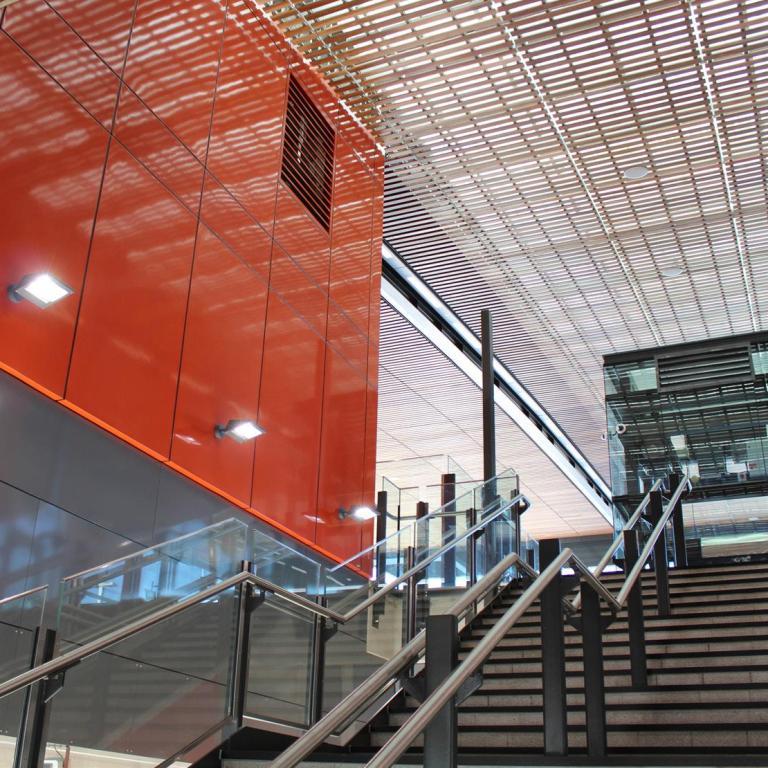

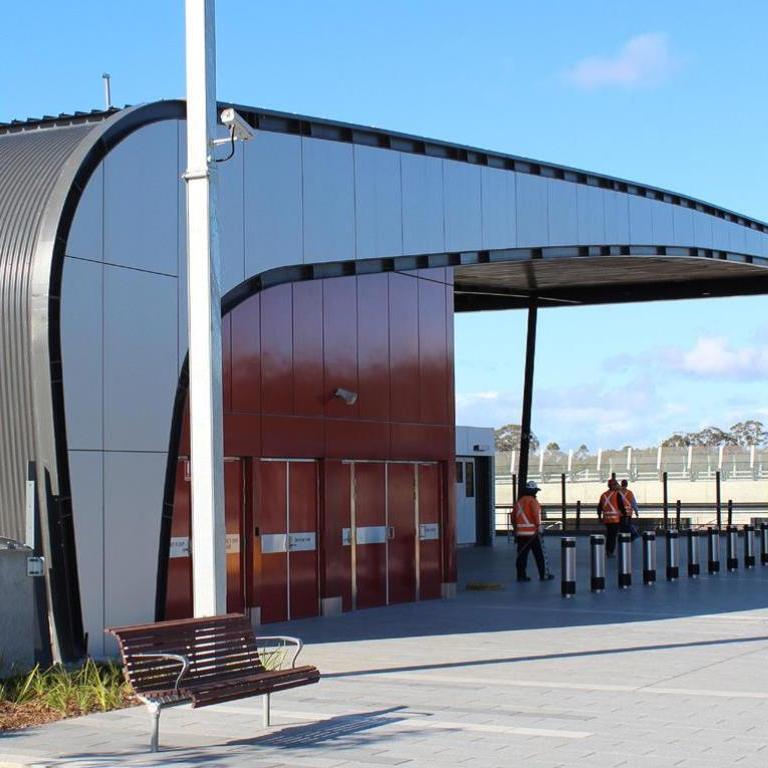

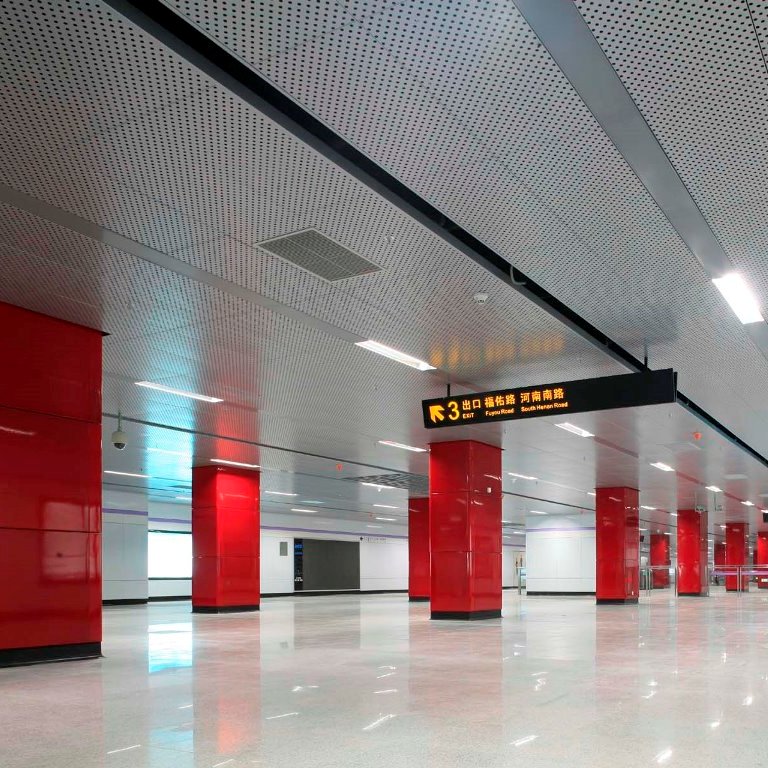

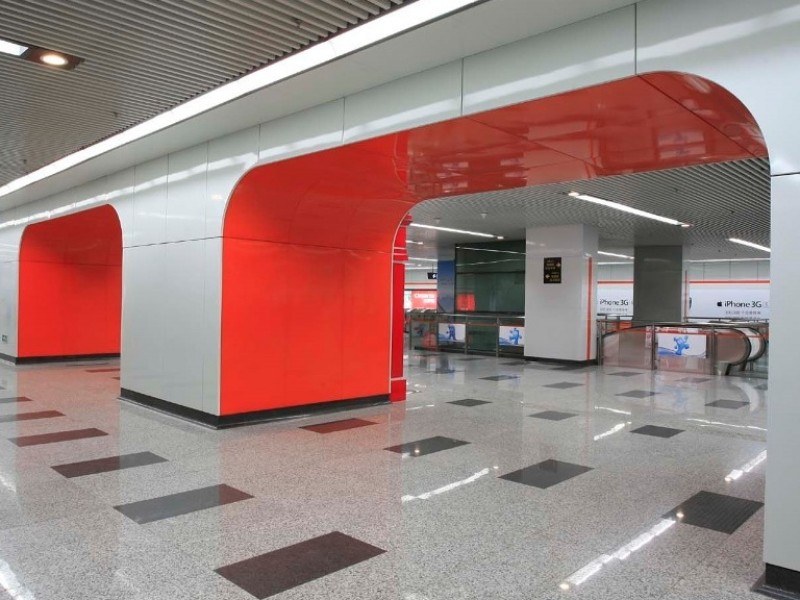

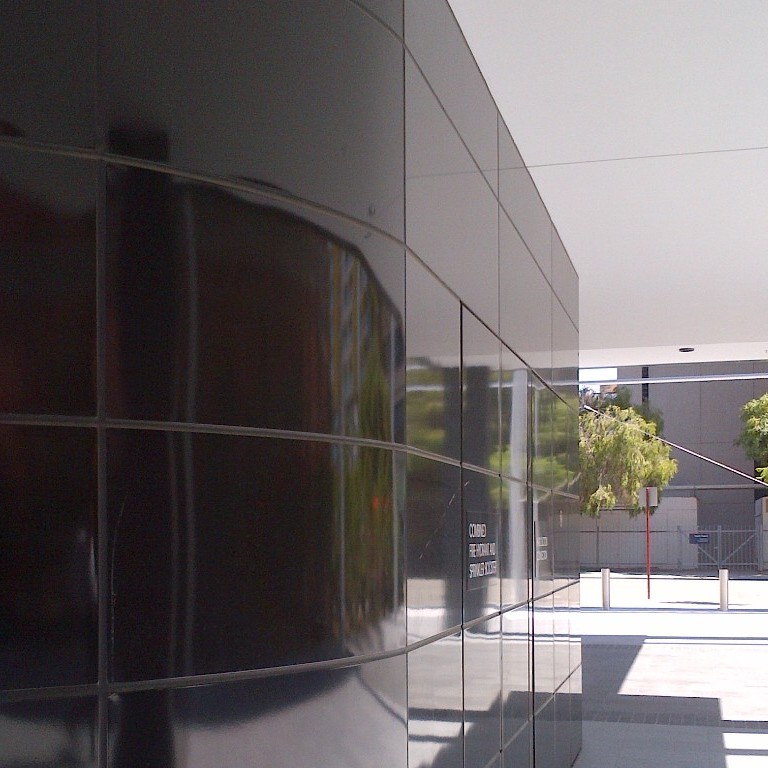

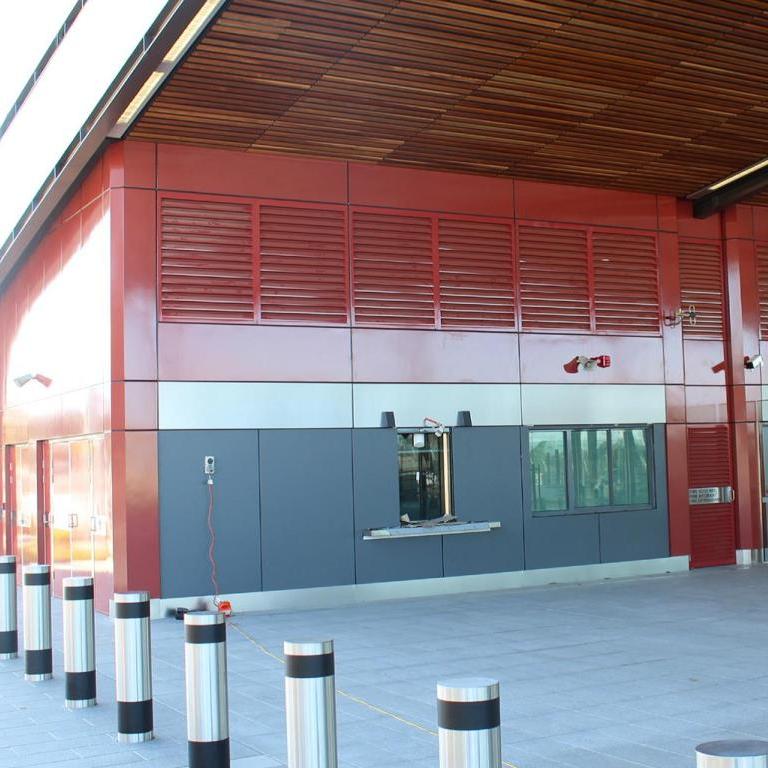

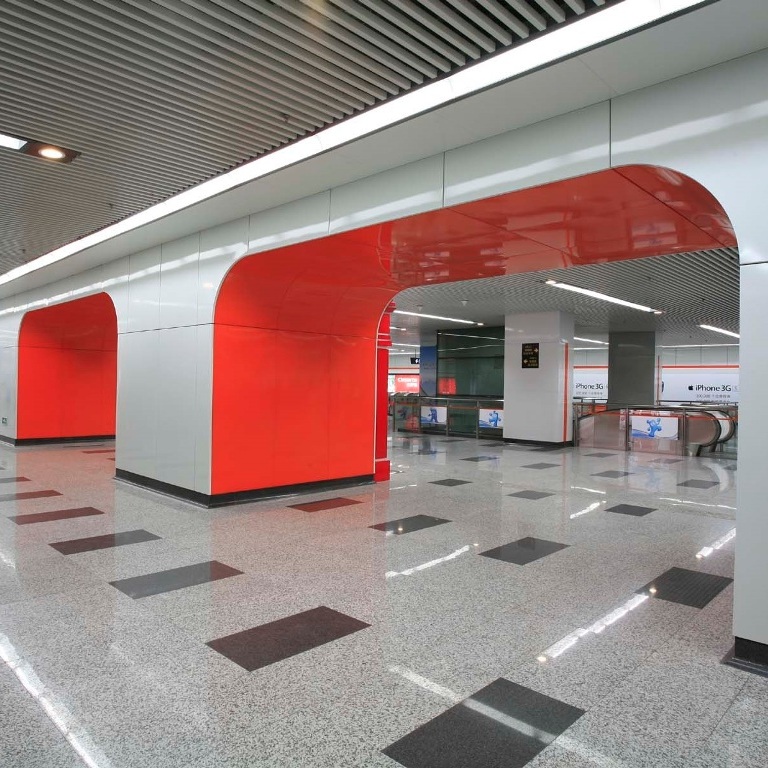

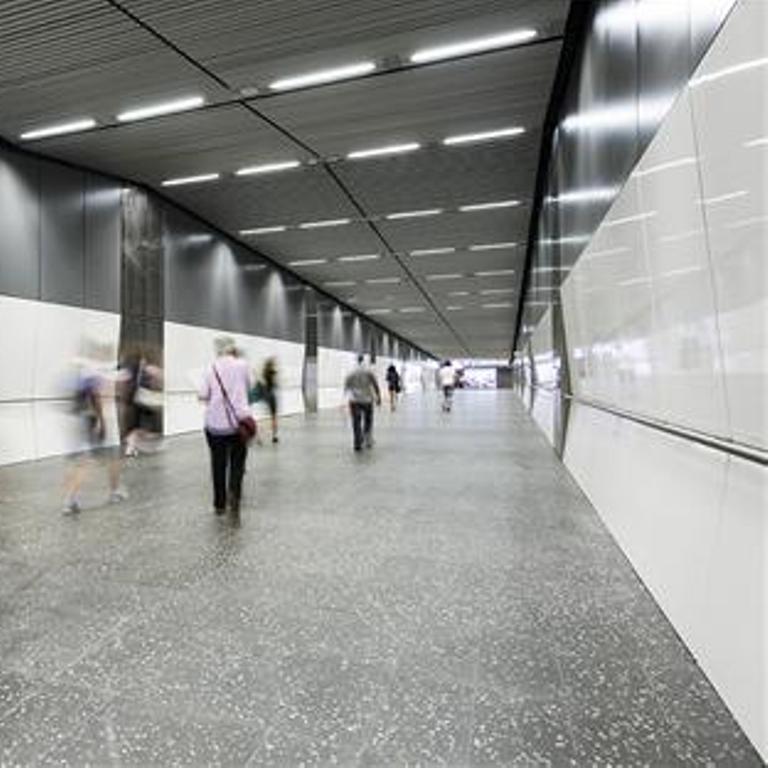

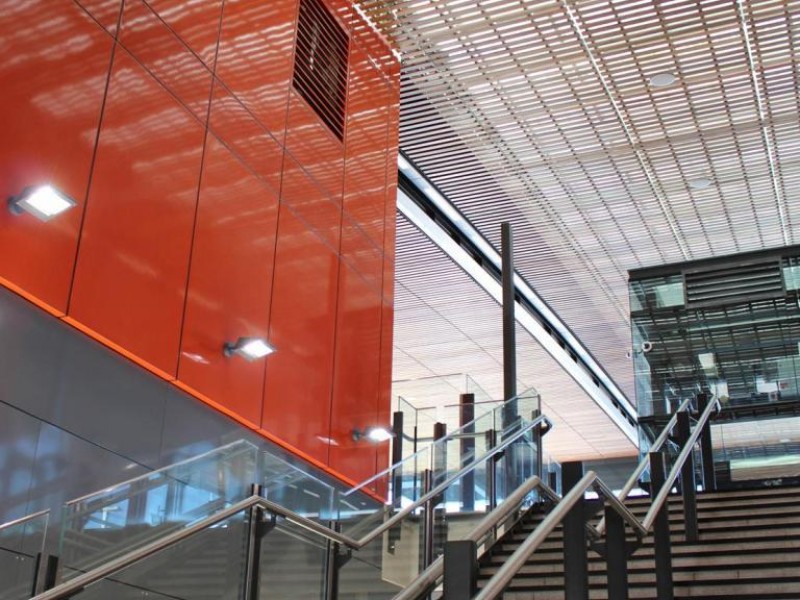

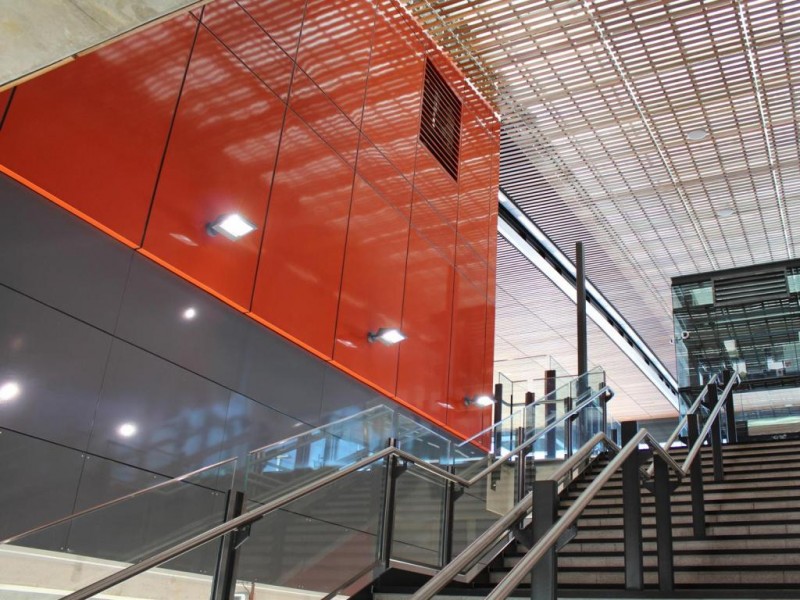

ULTRANAMEL vitreous enamel panel consists of a highly durable vitreous enamel coating applied to a decarbonised steel panel with an aluminium honeycomb or calcium silicate backing sheet. Vitreous enamelled architectural panels are routinely specified for commercial, institutional and infrastructure projects around the world; perfect for high impact, high traffic areas such as train stations, shopping malls and tunnels. ULTRANAMEL vitreous enamel panel has excellent anti-graffiti properties and is non-combustible providing unrivalled performance in public areas.


Unlimited Custom Colours

ULTRANAMEL vitreous enamel panel is available in an almost unlimited colour range. The original colour of the vitreous enamel panel is extremely durable and is expected to outlast a normal building life.


Graffiti Proof

ULTRANAMEL vitreous enamel panel is extremely durable. The vitreous enamel coating has excellent scratch, graffiti and impact resistance making it ideal for areas of heavy traffic or extreme wear.


UV Resistant

ULTRANAMEL vitreous enamel panel has a far superior colour consistency over time when compared to typical cladding panels. The colour and gloss level of these panels are unaffected by sunlight.


Fast Installation

ULTRANAMEL vitreous enamel panel is manufactured to order from provided shop drawings. The panels are formed into pre-made cassettes with fixing clips ready for fast and easy onsite installation.


Non-combustible

ULTRANAMEL vitreous enamel panel is a completely non-combustible steel cladding system, withstanding temperatures of over 400°C and are able to provide fire ratings of over 2 hours.


Low Maintenance

ULTRANAMEL vitreous enamel panel is very low maintenance. The surface is extremely smooth and extremely low static, preventing dust adhesion and resulting in only minimal cleaning required.


Versatile Design

ULTRANAMEL vitreous enamel panel can be custom designed into a wide range of shapes and dimensions. This compiled with a vast colour range make ULTRANAMEL a versatile design choice.


Hygienic Surface

ULTRANAMEL vitreous enamel panel has a completely non-porous surface that does not absorb any bacteria. The non-stick surface allows intense cleaning with hospital grade cleaning agents.




Availability

Product Range

ULTRANAMEL
Vitreous Enamel
ULTRANAMEL

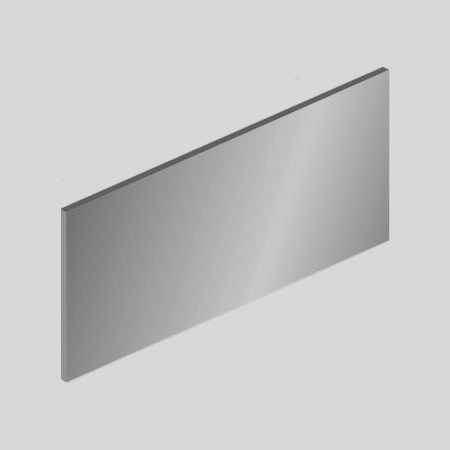

Flat Panels
ULTRANAMEL

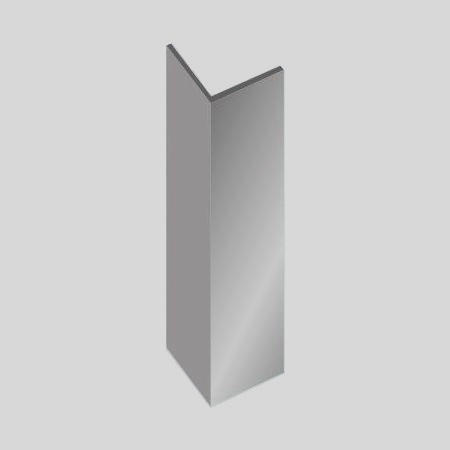

L-shaped Panels

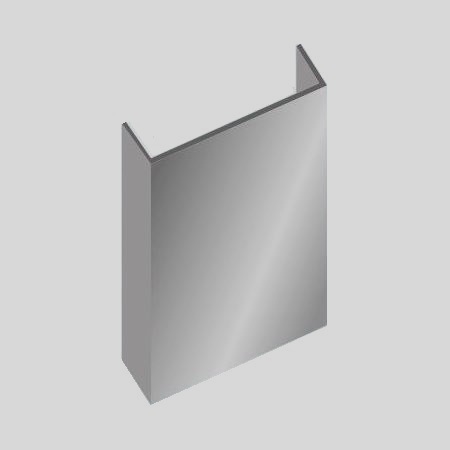

ULTRANAMEL
U-shaped Panels
ULTRANAMEL

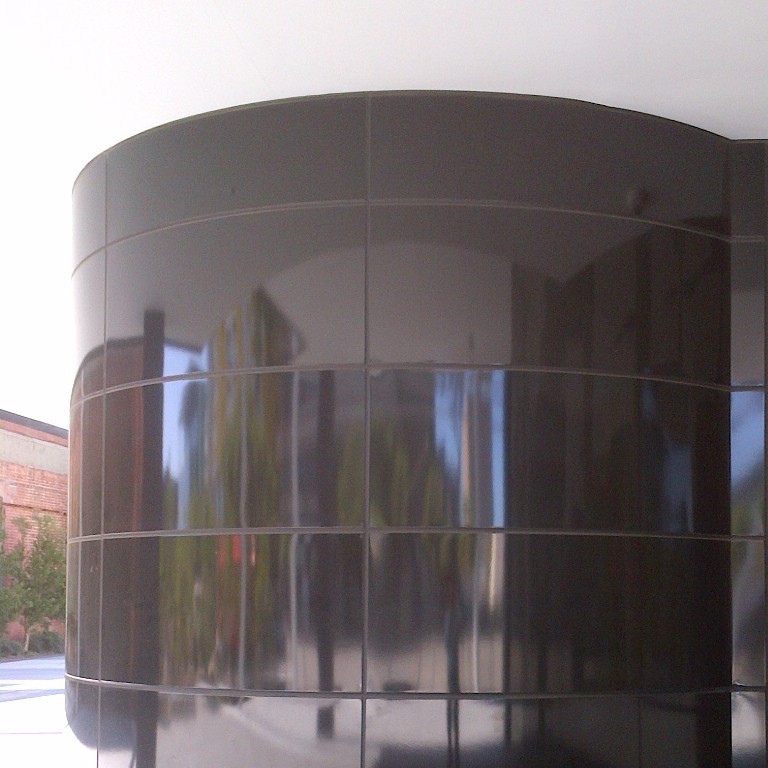

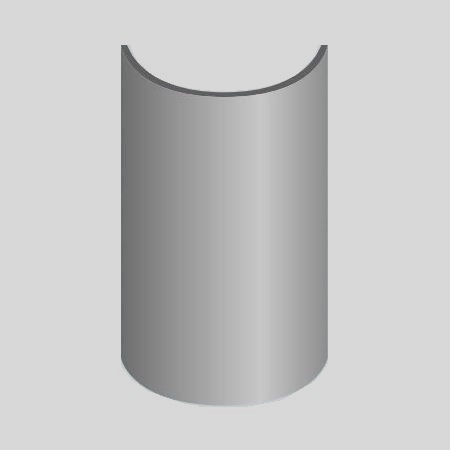

Curved Panels



Availability

Description

Panel Sizes

Lead Time

MOQ

ULTRANAMEL Flat Panels

Custom Sizes up to 2400 x 1150mm

10-12 Weeks

1 Panel

ULTRANAMEL L-shaped Panels

Custom Sizes up to 1600 x 1150mm

(1150mm is Width + Return)

10-12 Weeks 1 Panel

ULTRANAMEL U-shaped Panels

Custom Sizes up to 1600 x 1150mm

(1150mm is Width + Both Returns)

10-12 Weeks

1 Panel

ULTRANAMEL Curved Panels

Custom Sizes up to 1600 x 1150mm

(1150mm is Curved to Min. 300mm Radius)

10-12 Weeks 1 Panel



System Components

FIRESPAN
AS 1530.1 Sarking
SINIAT BOARD
Rigid Air Barrier
STUDTEK
Steel Sub-framing
NVELOPE
Aluminium Framing
SEALANTS
Prolastik & Sikaflex



Colour Chart

UN9016 Traffic White
UN9016 Traffic White
UN9010 Pure White
UN9010 Pure White
UN1013 Oyster White
UN1013 Oyster White
UN1015 Light Ivory
UN1015 Light Ivory
UN1014 Ivory
UN1014 Ivory
UN7044 Silk Grey
UN7044 Silk Grey
UN7030 Stone Grey
UN7030 Stone Grey
UN7005 Mouse Grey
UN7005 Mouse Grey
UN9002 Grey White
UN9002 Grey White
UN7035 Light Grey
UN7035 Light Grey
UN7004 Signal Grey
UN7004 Signal Grey
UN7000 Squirrel Grey
UN7000 Squirrel Grey
UN7011 Iron Grey
UN7011 Iron Grey
UN7016 Anthracite Grey
UN7016 Anthracite Grey
UN7022 Umbra Grey
UN7022 Umbra Grey
UN9005 Jet Black
UN9005 Jet Black
UN6019 Pastel Green
UN6019 Pastel Green
UN6021 Pale Green
UN6021 Pale Green
UN6018 Yellow Green
UN6018 Yellow Green
UN6037 Pure Green
UN6037 Pure Green
UN6029 Mint Green
UN6029 Mint Green
UN6026 Opal Green
UN6026 Opal Green
UN6005 Moss Green
UN6005 Moss Green
UN6003 Olive Green
UN6003 Olive Green
UN5024 Pastel Blue
UN5024 Pastel Blue
UN5023 Distant Blue
UN5023 Distant Blue
UN5015 Sky Blue
UN5015 Sky Blue
UN5021 Water Blue
UN5021 Water Blue
UN5019 Capri Blue
UN5019 Capri Blue
UN5002 Ultramarine Blue
UN5002 Ultramarine Blue
UN5008 Grey Blue
UN5008 Grey Blue
UN5011 Steel Blue
UN5011 Steel Blue
UN1016 Sulfur Yellow
UN1016 Sulfur Yellow
UN1018 Zinc Yellow
UN1018 Zinc Yellow
UN1023 Traffic Yellow
UN1023 Traffic Yellow
UN1037 Sun Yellow
UN1037 Sun Yellow
UN8008 Olive Brown
UN8008 Olive Brown
UN8028 Terra Brown
UN8028 Terra Brown
UN8019 Grey Brown
UN8019 Grey Brown
UN4007 Purple Violet
UN4007 Purple Violet
UN1017 Saffron Yellow
UN1017 Saffron Yellow
UN2003 Pastel Orange
UN2003 Pastel Orange
UN2004 Pure Orange
UN2004 Pure Orange
UN2002 Vermilion
UN2002 Vermilion
UN3020 Traffic Red
UN3020 Traffic Red
UN3001 Signal Red
UN3001 Signal Red
UN3003 Ruby Red
UN3003 Ruby Red
UN3005 Wine Red
UN3005 Wine Red
Unlimited Custom Colours
Unlimited Custom Colours

Downloads
