Overview
Reflective Foam Insulation

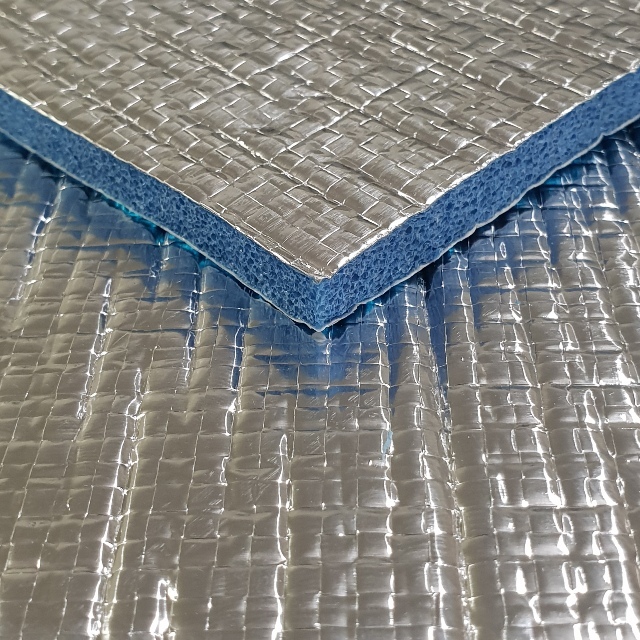

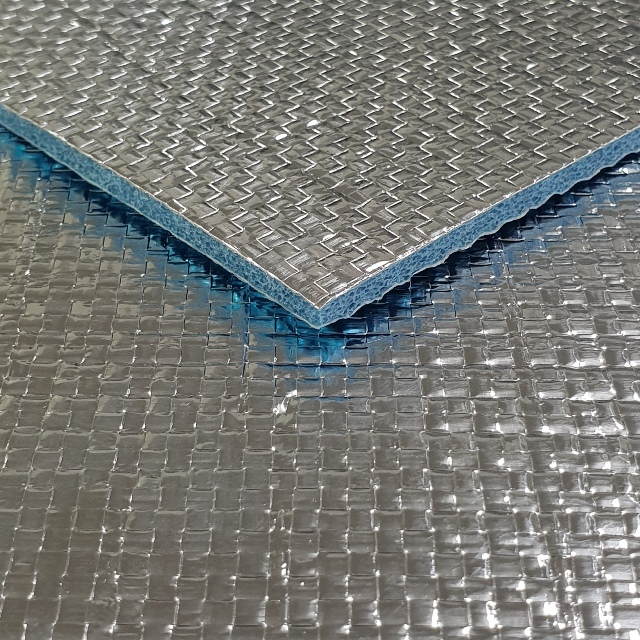

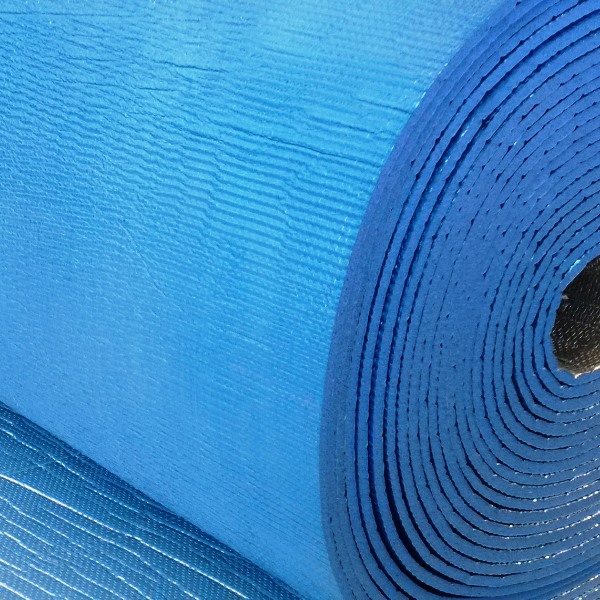

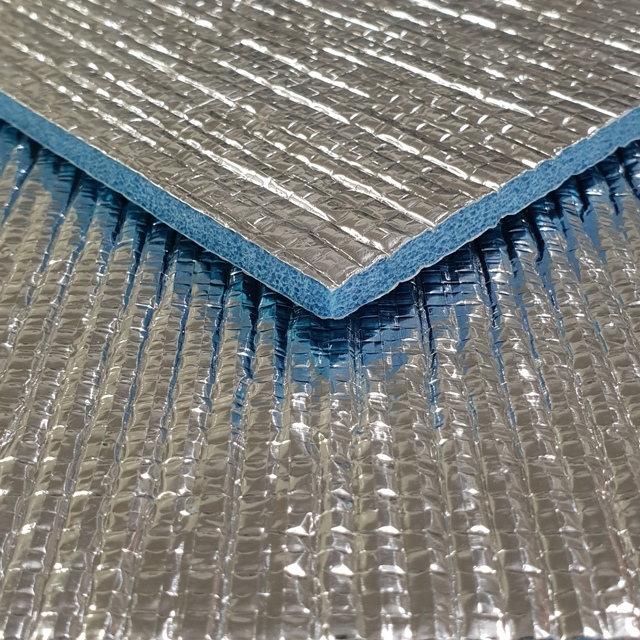

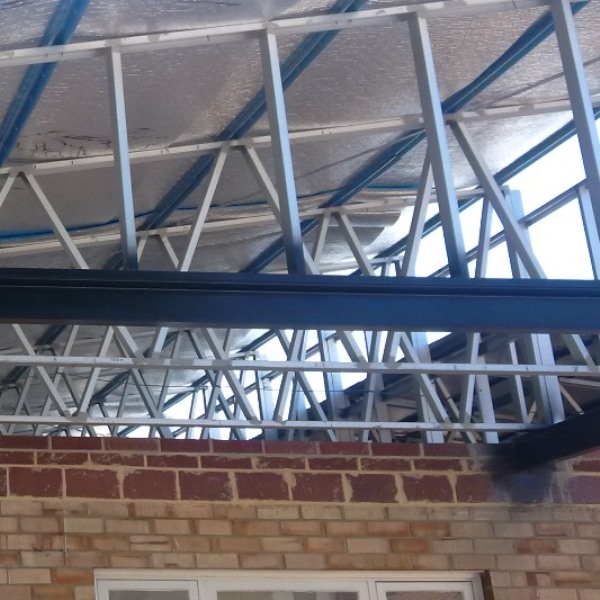

INSULBLUE foam insulation products are a heavy duty 3-in-1 insulation, thermal and radiant barrier comprising of an advanced high density closed cell XPE foam material sandwiched between two layers of poly woven foil. INSULBLUE foam insulation provides excellent thermal properties and reflectivity and is suitable for use in roof, cavity, wall wrap and floor systems for all construction types. It provides superior thermal ratings to standard sarking and helps to reduce thermal bridging between building elements such as exterior cladding and structure.
Easy to Use
INSULBLUE foam insulation is a ultra flexible product which is easily adaptable for wrap-around areas and varied surface types making it quick and easy to install.
Tear Resistance
With heavy duty foil and high density XPE foam core, INSULBLUE foam insulation is able to withstand high wind and has high tear resistance in extreme conditions.
Resistant to Delamination
The poly woven reflective foils used in the manufacture of INSULBLUE foam insulation offer outstanding resistance to delamination over time ensuring excellent long term performance.
Proven to Perform

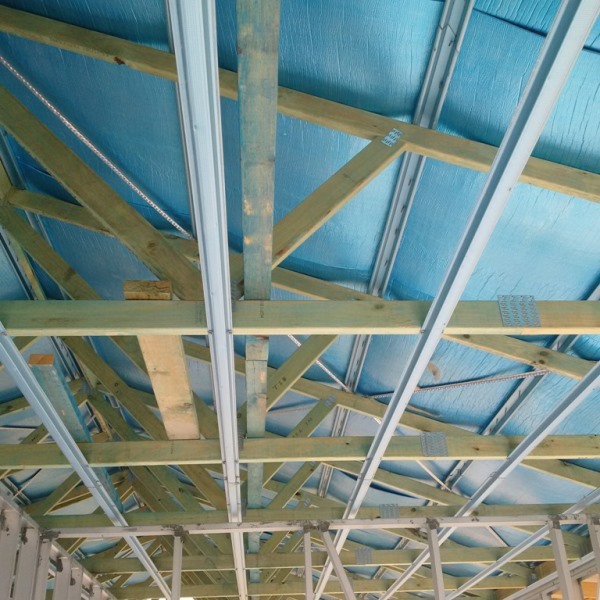

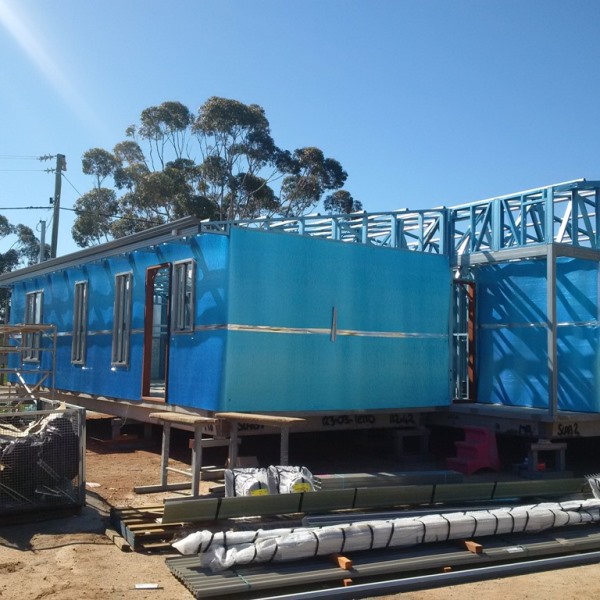

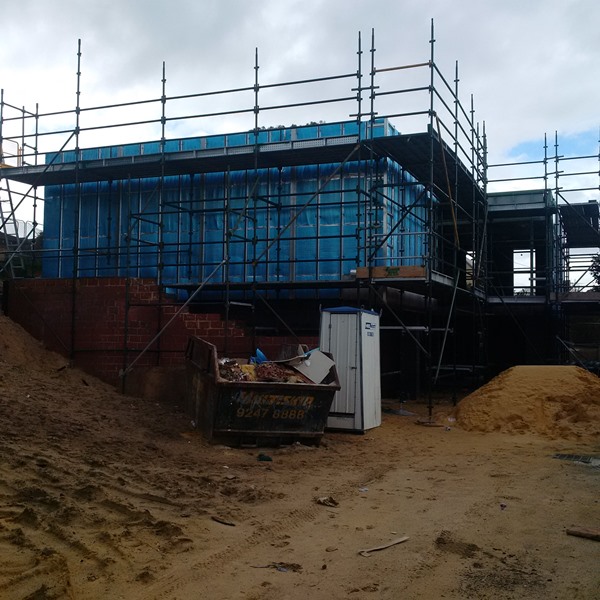

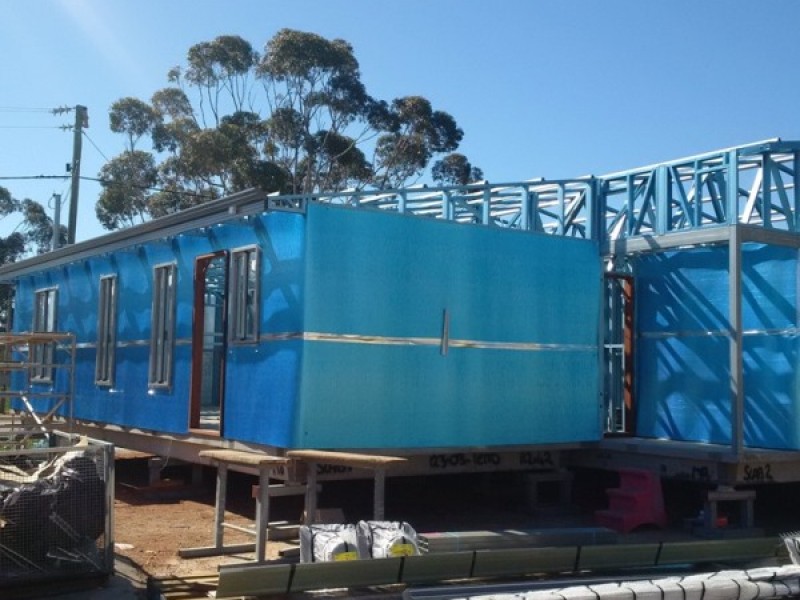

Used widely in roofing, wall wrap and cavity applications across Australia for many years, INSULBLUE foam insulation has been proven to withstand the harsh climate nationally.
BCA Compliant
INSULBLUE foam insulation has been tested in accordance with relevant Australian standards giving confidence to builders and contractors for suitability in all applications.
Fibre-free Material
Made from cross-linked closed cell XPE foam, INSULBLUE foam insulation is non-irritant to skin and non-allergenic making it easy for contractors to work with.
Clear Cavity Maintained

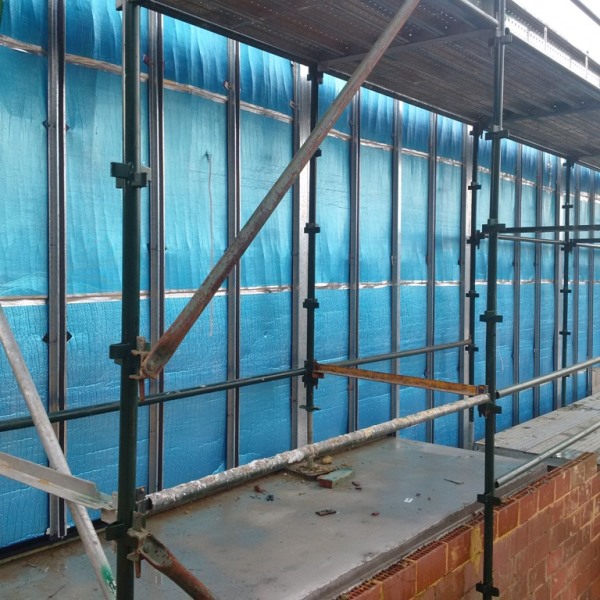

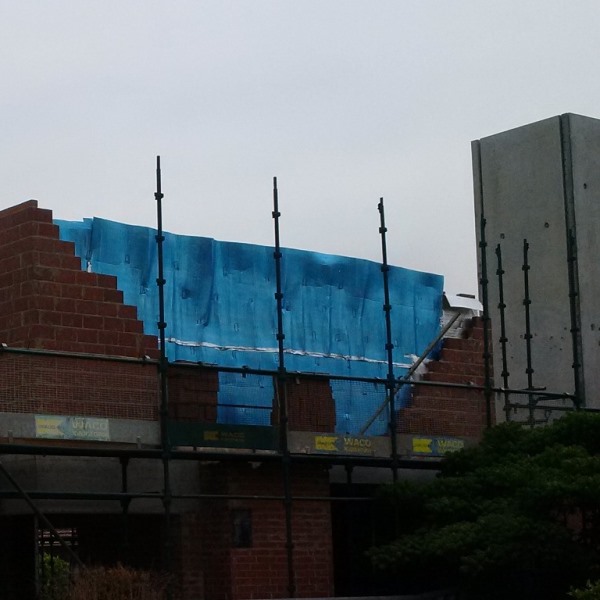

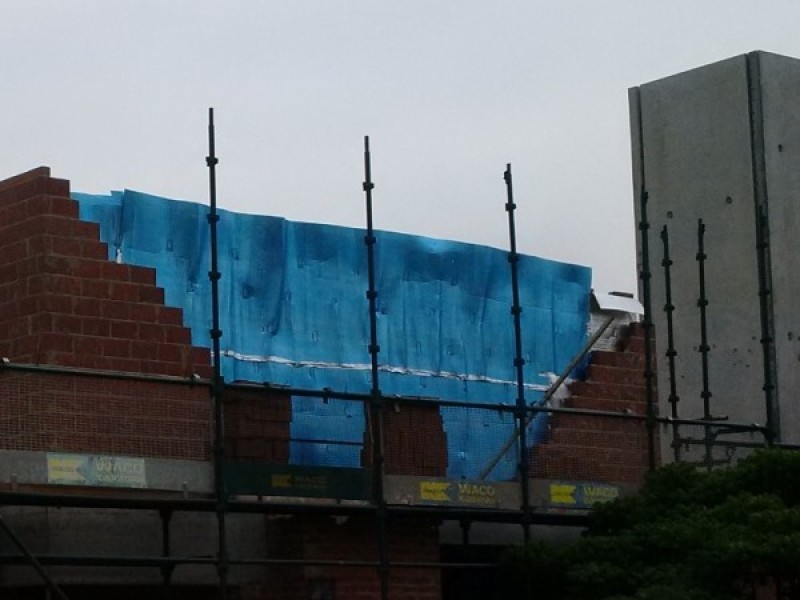

When INSULBLUE foam insulation is used in wall cavity applications such as double brick construction a clear cavity is still maintained making it easily accessible for services.
Water Resistant
The heavy duty facings and closed-cell material structure of INSULBLUE foam insulation means there is no product degredation over time caused by any event of moisture ingress.
*Does your project require Non-combustible materials?
If your project is required to be type A or B construction then all cladding, framing & insulation is required to be non-combustible. All the below cladding products are Deemed-to-Satisfy (DtS) non-combustible in accordance with NCC 2022, Clause C2D10 (Previously NCC 2019, Clause C1.9) and can be used anywhere a non-combustible material is required;

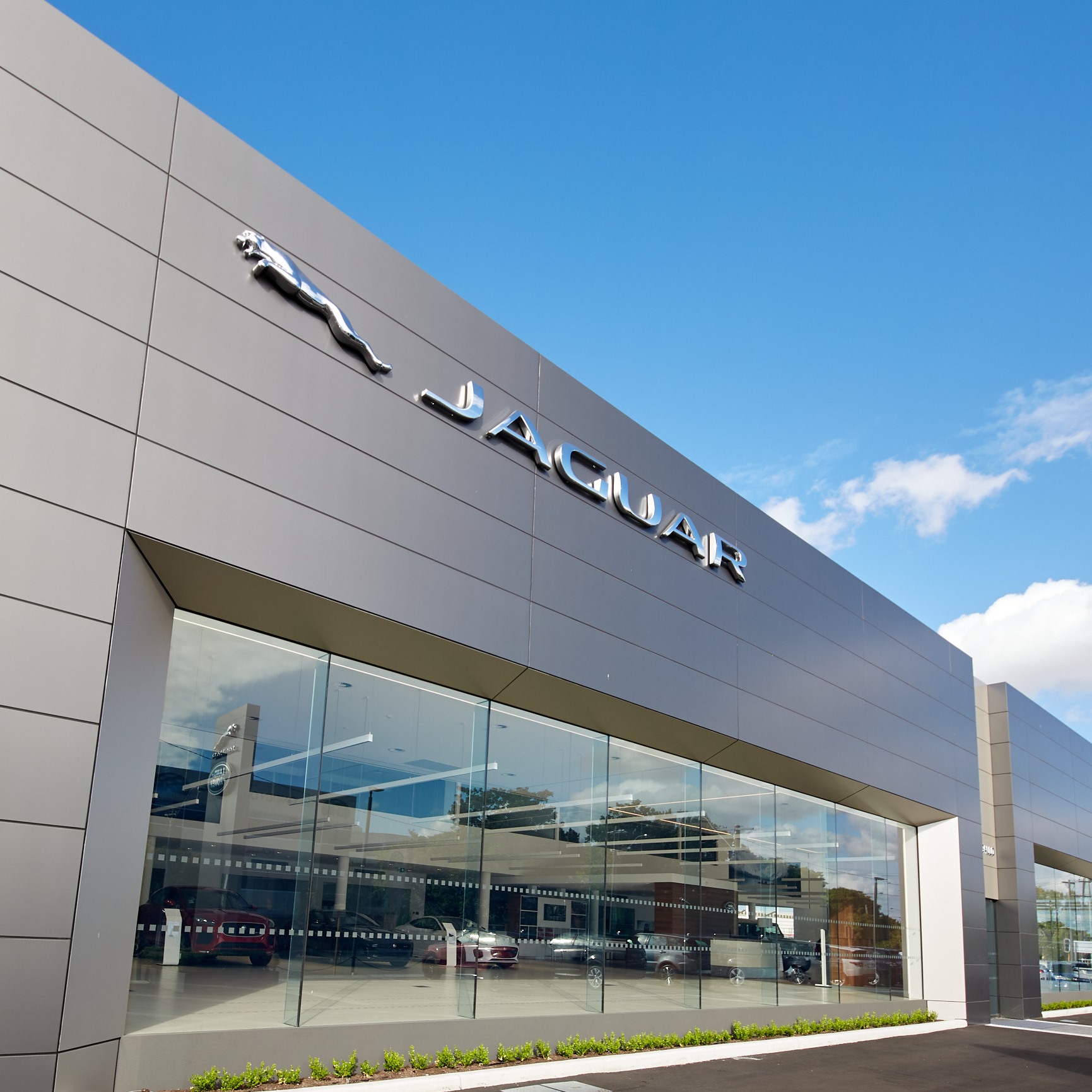

ULTRACORE IQ Aluminium Core |
ULTRASURE Solid Aluminium |

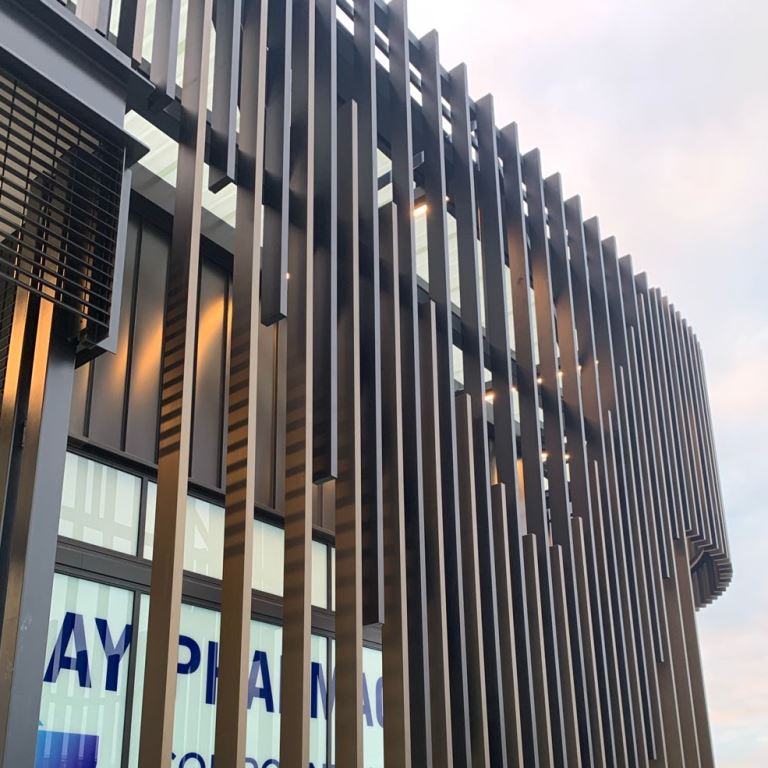

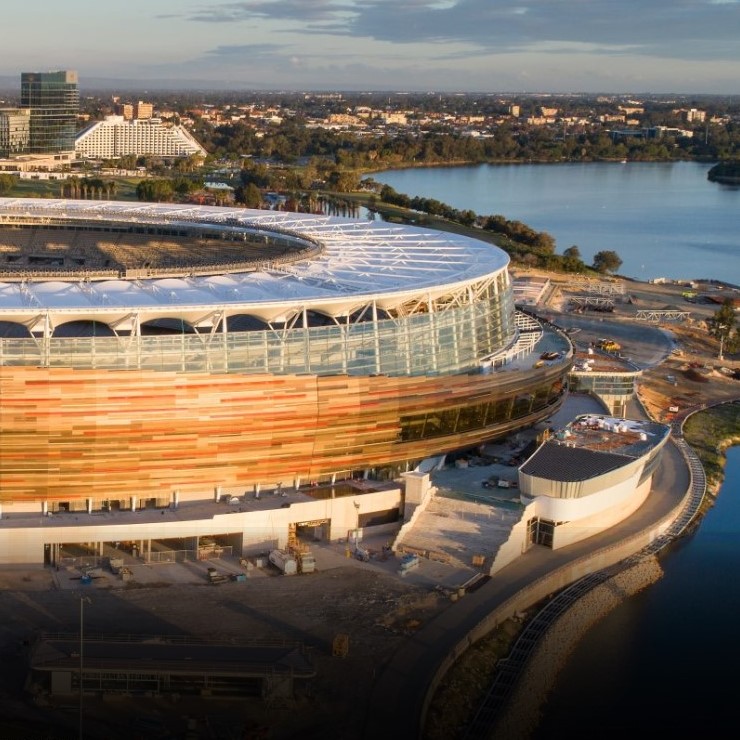

ULTRALIGN Aluminium Cladding |
ULTRALIGN Aluminium Battens |
ULTRANAMEL Vitreous Enamel |
![]() |
![]() |
![]() |
![]() |
![]() |
EQUITONE Through-colour FC |
EQUITONE Prefinished FC |
NATURION Natural-finish Panel |

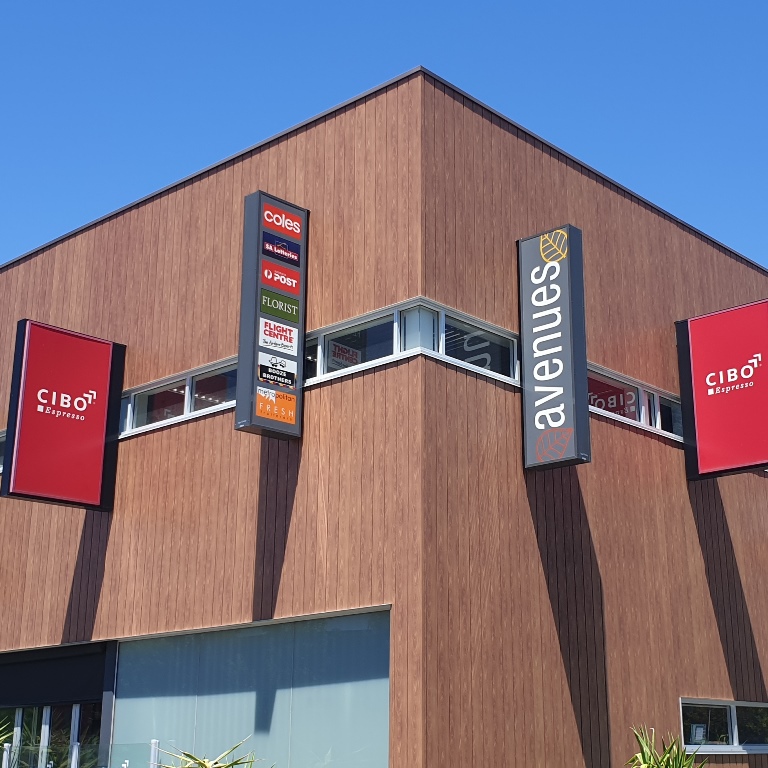

ULTRAWOOD AS 1530.1 Cladding |

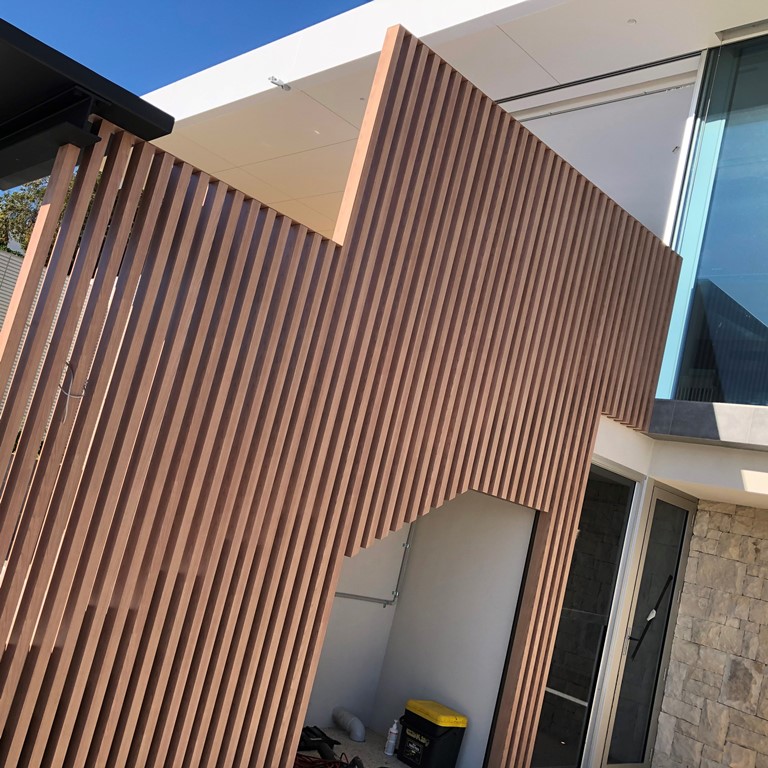

ULTRAWOOD AS 1530.1 Battens |
![]() |
![]() |
![]() |
![]() |
![]() |
BICEP & STUDTEK Steel Facade System |

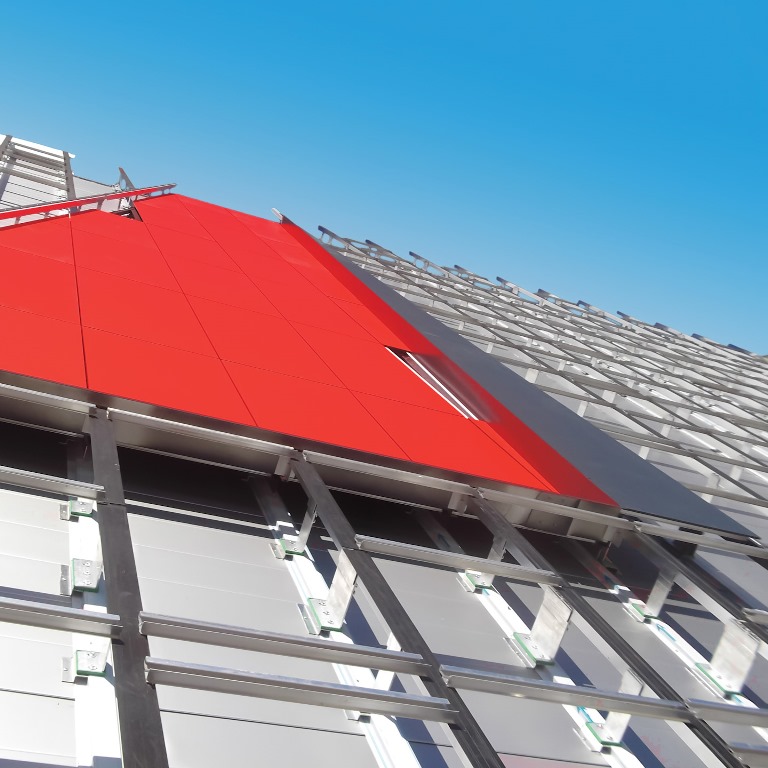

BICEP & NVELOPE Aluminium Framing |
FIRESPAN AS 1530.1 Sarking |
IROCK AS 1530.1 Insulation |
IROCK PLUS NC Soffit Insulation |
![]() |
![]() |
![]() |
![]() |
![]() |
Availability
Product Range
INSULBLUE Foam Insulation |

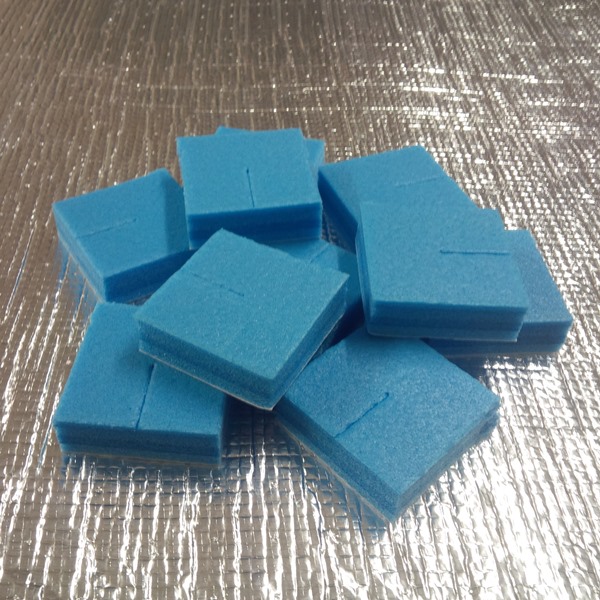

INSULBLUE Cavity Spacers |

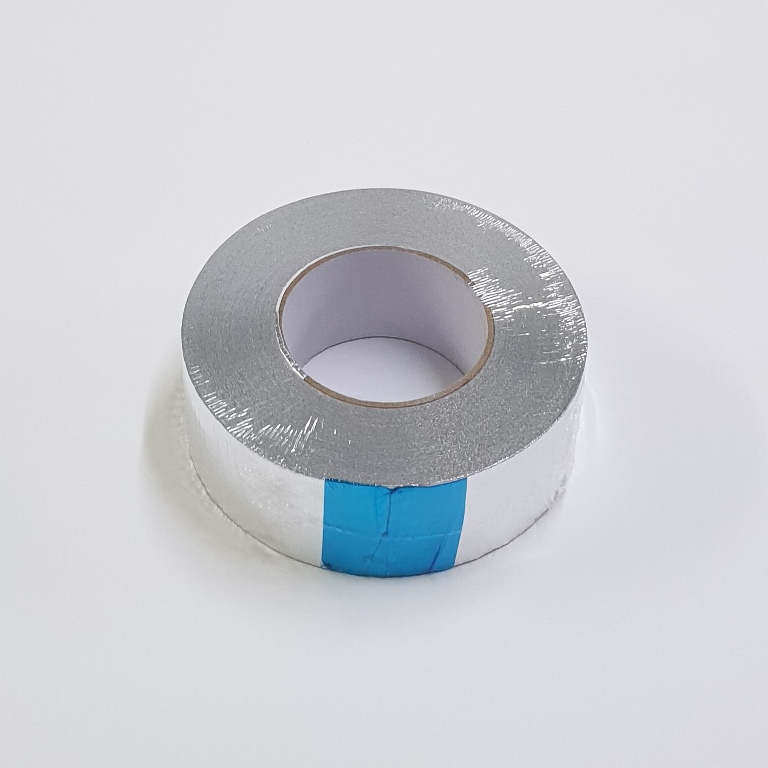

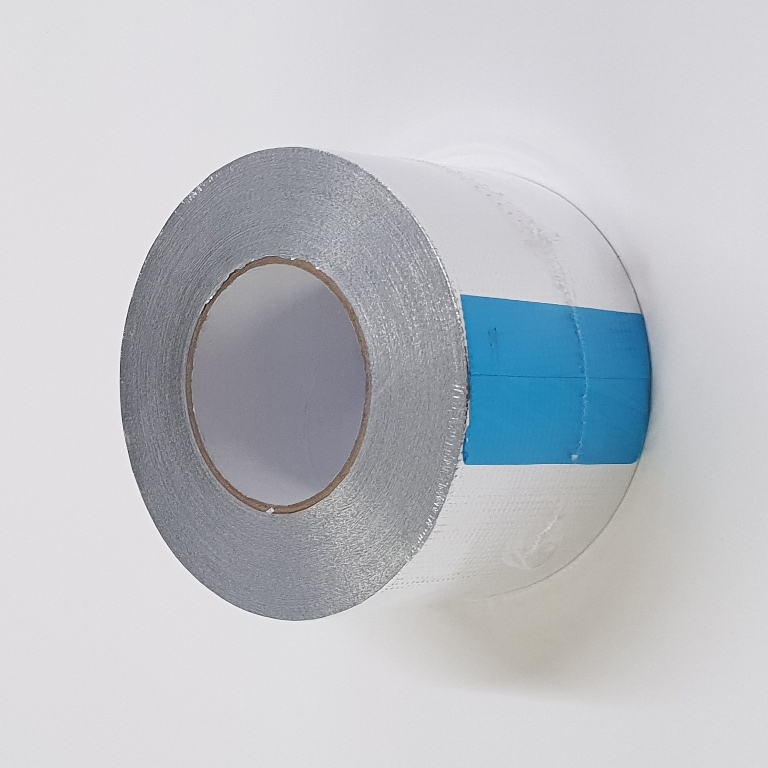

INSULTAPE Reinforced Foil Tape |
![]() |
![]() |
![]() |
Availability
Code | R-value |
Description |
Lead Time |
MOQ |
---|---|---|---|---|
IFX413522 | R0.10 |
INSULBLUE 4mm Cavity Insulation, 1.35 x 22.25m |
Stock |
1 Roll |
IFX613522 | R0.17 | INSULBLUE 6.5mm Cavity Insulation, 1.35 x 22.25m | Stock | 1 Roll |
IFX813522 | R0.20 | INSULBLUE 8mm Cavity Insulation, 1.35 x 22.25m | Stock | 1 Roll |
IFS813522 | R0.20 | INSULBLUE 8mm Vapour Barrier, 1.35 x 22.25m | Stock | 1 Roll |
Accessories
Code |
Description |
Lead Time |
MOQ |
---|---|---|---|

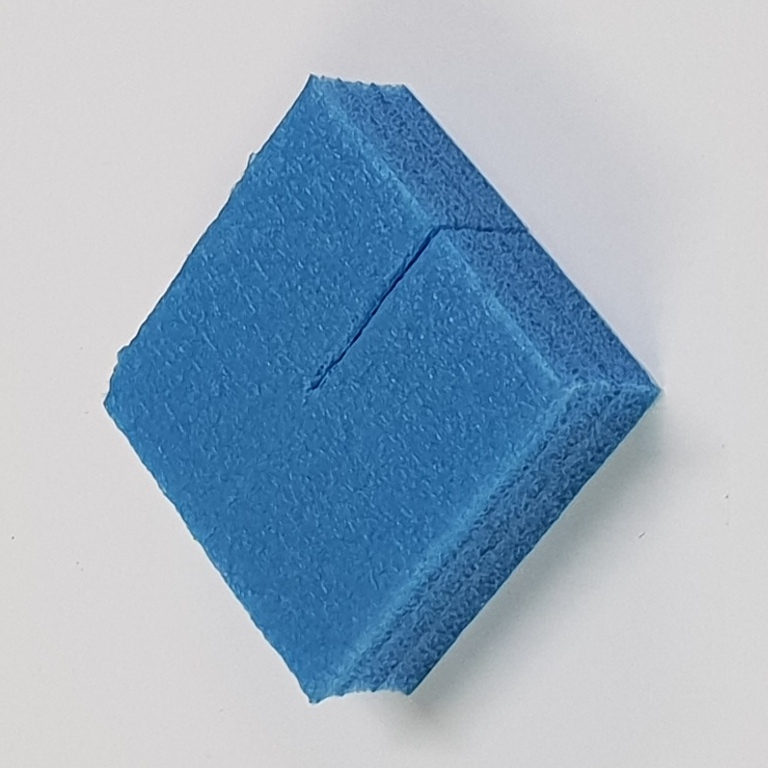

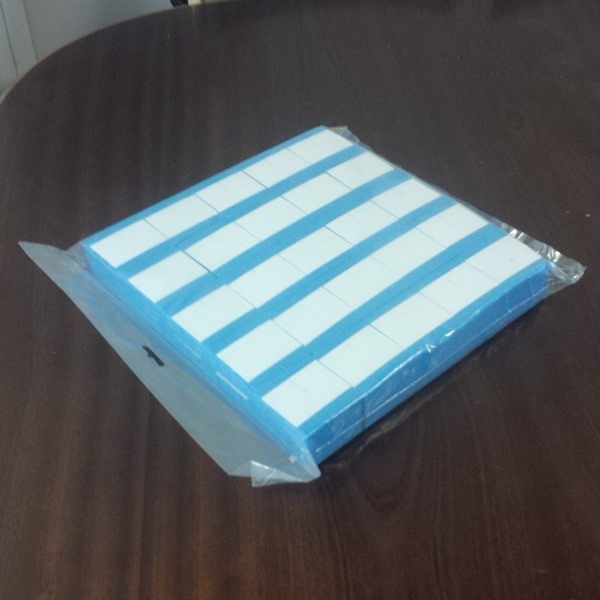

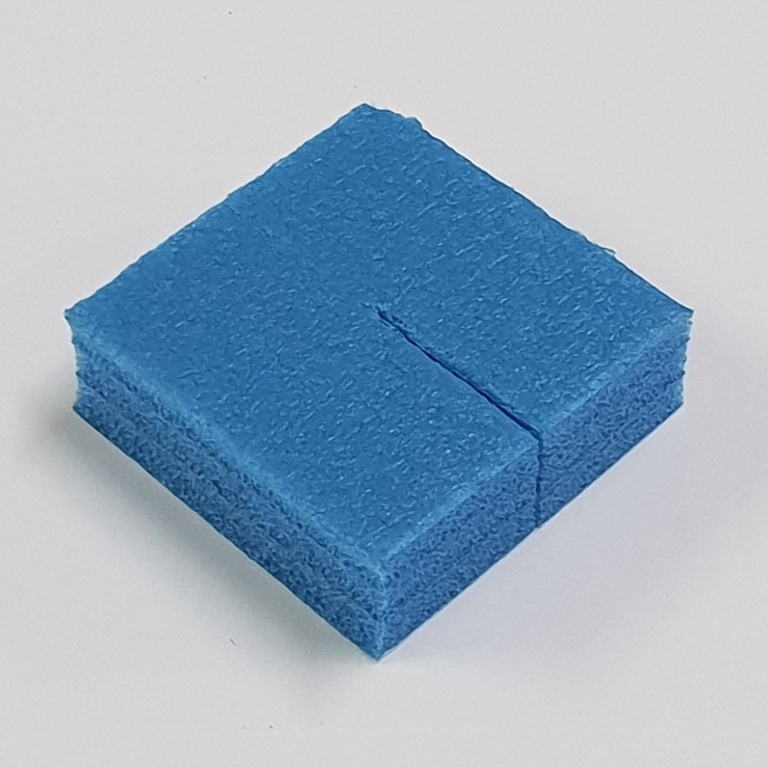

ICS6060 | INSULBLUE 60 x 60 x 20mm Cavity Spacers, 50 Pack | Stock | 1 Pack |

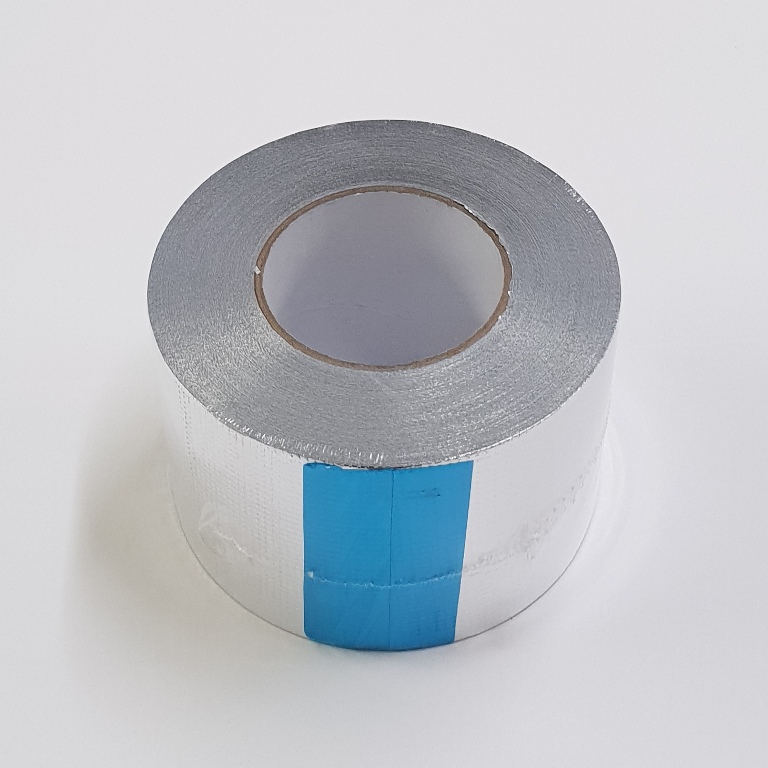

ITP4850 | INSULTAPE 48mm Reinforced Foil Tape, 50m Roll | Stock | 1 Roll |
ITP7250 | INSULTAPE 72mm Reinforced Foil Tape, 50m Roll | Stock | 1 Roll |
ITP9650 | INSULTAPE 96mm Reinforced Foil Tape, 50m Roll | Stock | 1 Roll |
Technical Data
Test Item |
Standard |
Result |
---|---|---|
Thermal Conductivity | ASTM C518 | 0.04 W/mK |
Flammability Index | AS 1530.2 | <5 |
Spread of Flame Index | AS 1530.3 | 0 |
Smoke Developed Index | AS 1530.3 | 1 |
Strength / Duty | AS 4200.1 | Heavy Duty |
Emittance | AS 4201.5 | 0.03 |
Reflectivity | Actual | 97% |
Dry Delamination | AS 4201.1 | Pass |
Wet Delamination | AS 4201.2 | Pass |
